| Channel |
1 |
| Controlled Slew Rate |
YES |
| Enable Logic |
Active High |
| Output Discharge |
YES |
| Reverse Current Block |
NO |
| TR (μs) |
320μs@VIN=3.3V, COUT=1μF, RL=5Ω |
| Max Continuous Current (A) |
3 |
| Ron (mΩ) |
22 |
| Power Supply (Min) (V) |
1.2 |
| Power Supply (Max) (V) |
5.5 |
| Temperature |
-40℃~85℃ |
| IO Level (V) |
1.8 |
| Package (mm) |
WLCSP 1.355X0.855-6B |
● Integrated P-channel MOSFET load switch
● Input voltage: 1.2V to 5.5V
● 3A maximum continuous switch current
● Switch on-resistance(typ.):
Rdson=17mΩ at VIN=5.5V
Rdson=22mΩ at VIN=3.3V
Rdson=81mΩ at VIN=1.2V
● Controlled slew rate to limit inrush currents
● Ultra low shutdown current
● Internal EN pull-down resistor
● Quick output discharge(QOD)
● WLCSP 1.355mm×0.855mm×0.55mm-6B

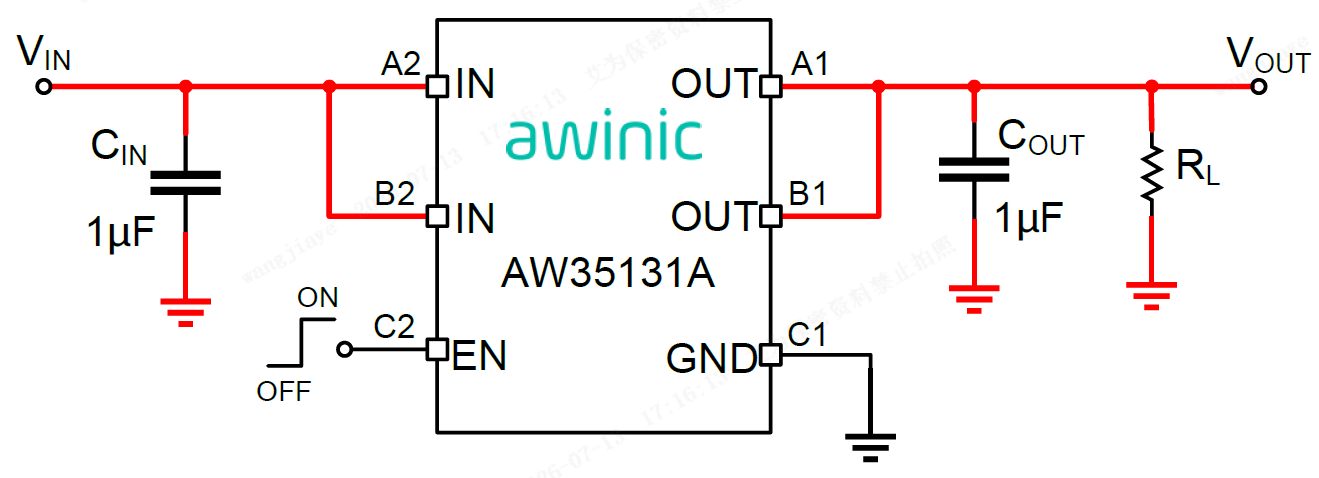

The AW35131ACSR is a load switch with output slew rate control. The device integrates a 22mΩ (typ.) P-channel MOSFET, which can operate over a wide input range of 1.2V to 5.5V.
The AW35131ACSR features output slew rate control, limiting inrush currents during turn-on to protect downstream devices. In addition, AW35131ACSR has QOD function which can prevent the output from floating when the switch is disabled.
