AW35065FCR

Adjustable Current-Limit Load Switch with OVP

产品手册：

在线预览 - AW35065FCR - 产品手册

参考价格

1-99￥4.61
100-249￥3.78
250-499￥3.05
500-999￥2.40
1000+￥1.85

产品详细信息

参数

Controlled Slew Rate	YES
Enable Logic	Active High
Output Discharge	NO
Programmable Current Limit	YES
Current Limit （Min）(A)	0.1
Current Limit （Max）(A)	4
Reverse Current Blocking	YES
Fault Flag	YES
Power Supply (Min) (V)	2.7
Power Supply (Max) (V)	5.5
Temperature	-40℃~85℃
IO Level (V)	1.2
Package (mm)	FCQFN 1.3X1.8-12L

封装 | 引脚 | 尺寸

FCQFN 1.3X1.8-12L

特性

VIN: 2.7~5.5V
28V Absolute Rating at VOUT
4A Continuous Current Capability
Adjustable Current Limit:0.1A~4A (Typ.)
0.5A~4A with 7% Accuracy
<0.5A with 10% Accuracy
<0.3A with 15% Accuracy
Ron: 35mΩ (Typ.)
Soft-start
Output OVP: Typ.=5.8V
No Output Discharge During Off State
Open-Drain over-current fault flag
Thermal Shutdown
Under-Voltage Lockout (UVLO)
True Reverse-Current Blocking (TRCB)
Shut-Down Supply Current: 0.5μA
FCQFN 1.3mm×1.8mm-12L package

说明

AW35065 is a current-limiting protection switch, 35mΩ(Typ.), low resistance MOSFET switch intended to be inserted between a power source and a load to isolate and protect against abnormal voltage and current conditions. The input operating voltage range is between 2.7V to 5.5V. The output terminal is rated 28V absolute maximum.
The internal soft-start circuit controls inrush current due to highly capacitive loads. The device features very low quiescent current. The supply current reduces to 0.5μA in shut-down state.
The AW35065 has True Reverse-Current Blocking (TRCB) protection to avoid undesired reverse current from output to its input in either enabled in disabled states.
The AW35065 also features several additional protection functions, such as output over-voltage (OVP) and input under-voltage protection (UVLO), plus over-current (with Fault-flag) and thermal protection.

技术文档

类型	项目标题	语言	日期
产品设计指南	AW35065 Hardware Design Guide	中文	2023-05-15
产品手册	DS_AW35065_EN_V1.0	英文	2023-05-05
新品发布	艾为电子推出高压过流保护负载开关系列产品AW35065&AW35061	中文	2023-12-18

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

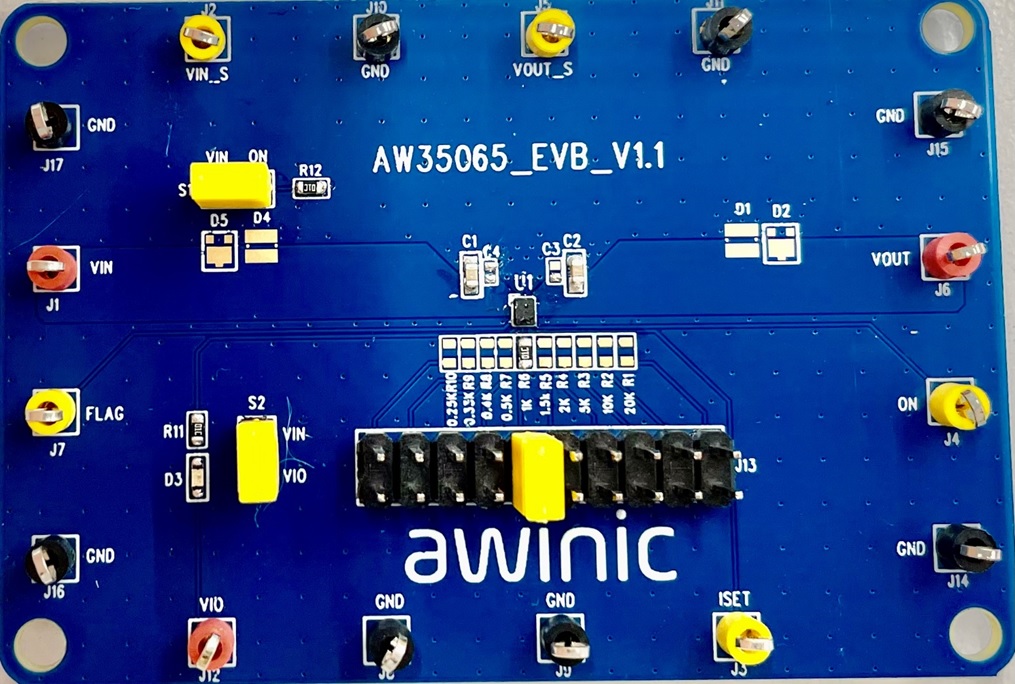

AW35065_EVB_V1.1 — AW35065是一款具有反向电流保护功能的过压保护负载开关，集成了输入欠压锁定、过温保护、过压保护、反向电流保护以及异常状态指示等功能。芯片关键测试点均在AW35065 EVB板上单独引出，方便演示和测试

AW35065 EVB 是OCP产品AW35065的评估板
