AW35045BSTR

Power Distribution Switch with Fixed Current Limit

产品手册 :

在线预览 - AW35045BSTR-英语版 - 产品手册

您可能感兴趣的替代产品

比较替代产品

AW35045BDSTR

Power Distribution Switch with Fixed Current Limit

产品详细信息

Controlled Slew Rate	YES
Enable Logic	Active High
Output Discharge	NO
Programmable Current Limit	NO
Current Limit （Min）(A)	2.1
Current Limit （Max）(A)	2.1
Reverse Current Blocking	YES
Fault Flag	YES
Power Supply (Min) (V)	2.5
Power Supply (Max) (V)	5.5
Temperature	-40℃~85℃
IO Level (V)	1.8
Package (mm)	SOT23-5L

WBSOT23-5L(1.25)

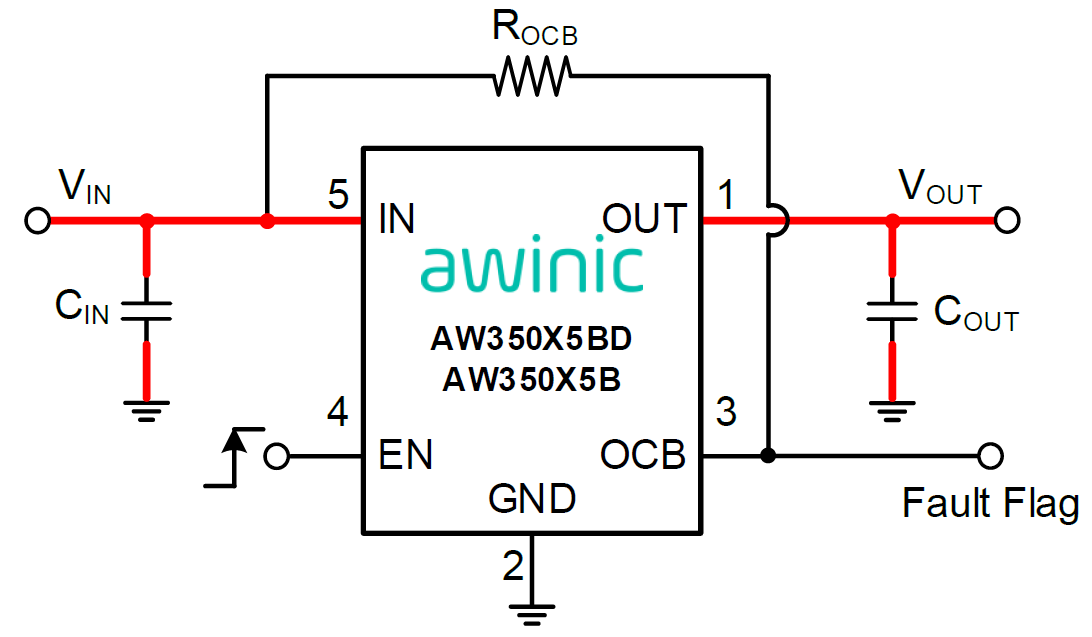

● Integrated P-channel MOSFET power switch ● Input voltage: 2.5V to 5.5V ● Fixed current limit ● Switch on-resistance(typ.): Rdson=65mΩ at VIN=5V ● ±10% current limit accuracy ● Reverse current protection ● Internal EN pull-down/up resistor ● Under voltage lockout ● Over temperature protection ● Quick Output Discharge(QOD) AW35005BD/25BD/35BD/45BD/45LBD/55BD: Auto QOD AW35005B/025B/035B/045B/055B: No QOD ● SOT23-5L package

The AW350X5BD/AW350X5B/AW35045LBD is a P-channel MOSFET power distribution switch which intended for high-side load-switching applications. The device integrates current limit function to protect power source from over current and short circuit condition. Besides, a flag output is available to indicate fault conditions. The AW350X5BD/AW350X5B/AW35045LBD also features fast short-circuit response, under voltage lockout, over temperature protection, reverse current protection. The AW350X5BD and the AW35045LBD build in quick output discharge function. Fixed current limit selection table: AW35005BD/AW35005B: 0.5A fixed current limit AW35025BD/AW35025B: 1.1A fixed current limit AW35035BD/AW35035B: 1.5A fixed current limit AW35045BD/AW35045LBD/AW35045B: 2.1A fixed current limit AW35055BD/AW35055B: 2.5A fixed current limit
