| Controlled Slew Rate |
YES |
| Enable Logic |
Active High |
| Output Discharge |
NO |
| Programmable Current Limit |
NO |
| Current Limit （Min）(A) |
1.1 |
| Current Limit （Max）(A) |
1.1 |
| Reverse Current Blocking |
YES |
| Fault Flag |
YES |
| Power Supply (Min) (V) |
2.5 |
| Power Supply (Max) (V) |
5.5 |
| Temperature |
-40℃~85℃ |
| IO Level (V) |
1.8 |
| Package (mm) |
SOT23-5L |
● Integrated P-channel MOSFET power switch
● Input voltage: 2.5V to 5.5V
● Fixed current limit
● Switch on-resistance(typ.):
Rdson=65mΩ at VIN=5V
● ±10% current limit accuracy
● Reverse current protection
● Internal EN pull-down/up resistor
● Under voltage lockout
● Over temperature protection
● Quick Output Discharge(QOD)
AW35005BD/25BD/35BD/45BD/45LBD/55BD: Auto QOD
AW35005B/025B/035B/045B/055B: No QOD
● SOT23-5L package

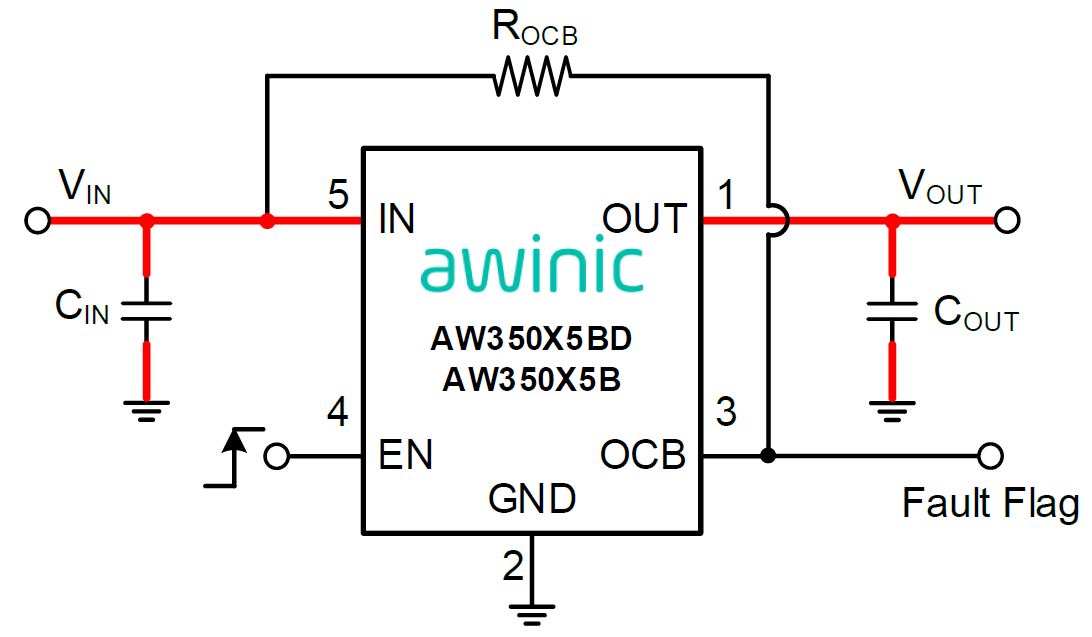

The AW350X5BD/AW350X5B/AW35045LBD is a P-channel MOSFET power distribution switch which intended for high-side load-switching applications. The device integrates current limit function to protect power source from over current and short circuit condition. Besides, a flag output is available to indicate fault conditions.
The AW350X5BD/AW350X5B/AW35045LBD also features fast short-circuit response, under voltage lockout, over temperature protection, reverse current protection. The AW350X5BD and the AW35045LBD build in quick output discharge function.
Fixed current limit selection table:
AW35005BD/AW35005B: 0.5A fixed current limit
AW35025BD/AW35025B: 1.1A fixed current limit
AW35035BD/AW35035B: 1.5A fixed current limit
AW35045BD/AW35045LBD/AW35045B: 2.1A fixed current limit
AW35055BD/AW35055B: 2.5A fixed current limit
