AW35003BSTR

Power Distribution Switch with Adjustable Current Limit

产品手册 :

在线预览 - AW35003BSTR-英语版 - 产品手册

参考价格：

1-99￥1.95
100-249￥1.60
250-499￥1.28
500-999￥1.01
1000+￥0.78

产品详细信息

Controlled Slew Rate	YES
Enable Logic	Active Low
Output Discharge	NO
Programmable Current Limit	YES
Current Limit （Min）(A)	0.4
Current Limit （Max）(A)	2.5
Reverse Current Blocking	YES
Fault Flag	YES
Power Supply (Min) (V)	2.5
Power Supply (Max) (V)	5.5
Temperature	-40℃~85℃
IO Level (V)	1.8
Package (mm)	SOT23-6L

SOT23-6L

● Integrated P-channel MOSFET power switch ● Input voltage: 2.5V to 5.5V ● 0.4~2.5A adjustable current Limit ● Switch on-resistance(typ.): Rdson=65mΩ at VIN=5V ● ±9% current limit accuracy at 1A(typ.) ● Reverse current protection ● Internal EN pull-down/up resistor ● Under voltage lockout ● Over temperature protection ● Quick Output Discharge(QOD) AW35003BD/AW35013BD: Auto QOD AW35003B/AW35013B: No QOD ● SOT23-6L package

AW35003BD/AW35013BD/AW35003B/ AW35013B is a P-channel MOSFET power distribution switch which intended for high-side load-switching applications. The device integrates adjustable current limit function with an external resistor from ISET pin to ground. Besides, a flag output is available to indicate fault conditions. AW35003BD/AW35013BD/AW35003B/AW35013B also features fast short-circuit response, under voltage lockout, over temperature protection, reverse current protection. The AW35003BD ａｎｄ AW35013BD builds ｉｎ quick output discharge function.

技术文档

	类型	项目标题		语言		日期
	产品设计指南	AW350X3B 硬件设计指南		中文		2023-10-26
	产品手册	DS_AW35003BD_AW35013BD_AW35003B_AW35013B_EN_V1.1		英文		2025-06-20

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

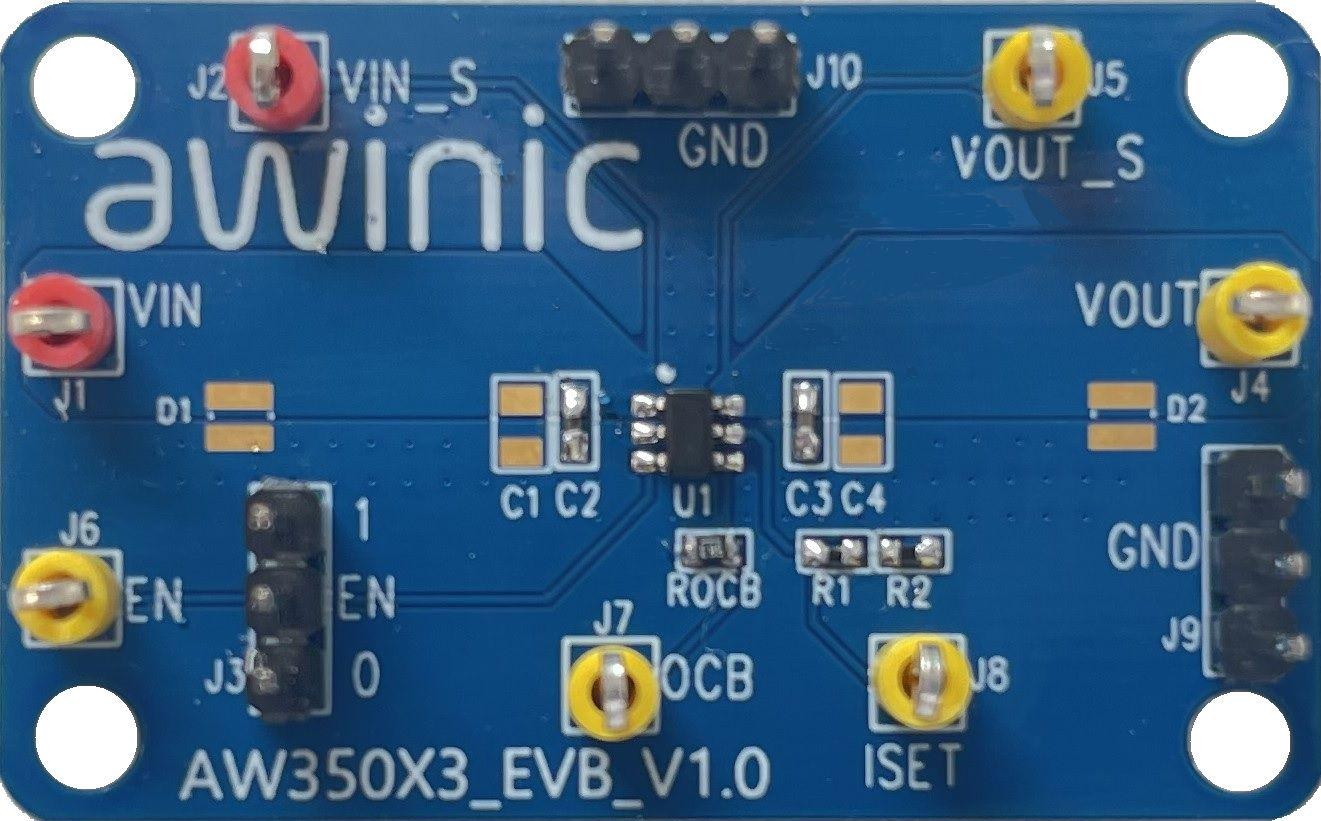

AW350X3_EVB_V1.0 — AW350X3_EVB_V1.0是艾为低压OCP系列产品评估板，可用于AW350X3系列产品的演示和测试，测试点在板上均已引出，方便调试。
