AW32105EHFCR

Over-Voltage Protection Load Switch with Ideal Diode True Reverse Current

产品手册：

在线预览 - AW32105EHFCR - 产品手册

参考价格

1-99￥6.35
100-249￥5.20
250-499￥4.19
500-999￥3.30
1000+￥2.54

产品详细信息

参数

Default OVP Threshold (V)	24
Number of PIN	12
Surge Protection (V)	25
Continuous current of switch IN-OUT （Max）（A）	5.5
Ron (mΩ)	24
Input DC Withstand Voltage (V)	24
OVP Response Time (ns)	50
Temperature	-40℃~85℃
IO Level (V)	1.2 1.8
Package (mm)	FCQFN 2X1.5-12L

封装 | 引脚 | 尺寸

FCQFN 2X1.5-12L

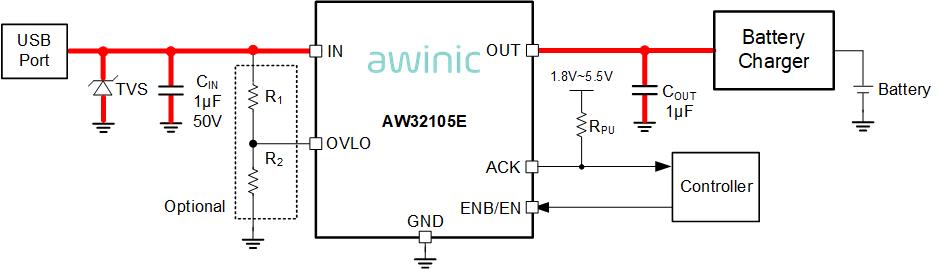

特性

 Wide Input Voltage range from 4V to 24V  31V Abs. Max. rating at IN  5.5A continuous current capability  Integrated ultra-low Ron switch: typical 24 m  Over-Voltage Protection (OVP)  Default 24V with OVLO grounded  Adjustable from 4V to 24V with external resistors  Fast Over-Voltage Protection turn-off response: typical 50ns  “Ideal Diode” Reverse-Current Protection (RCP) only for AW32105E  Support OTG (On-The-Go) function only for AW32105P  Soft-Start for Inrush Current Limit  Over-Current Protection (OCP)  Short-Circuit Protection (SCP)  Over-Temperature Protection (OTP)  Under-Voltage Lockout (UVLO)  Auto-Retry after all faults  1.2V and 1.8V Logic Compatible  FCQFN 2mm×1.5mm×0.55mm-12L, 0.5mm pitch package

技术文档

类型	项目标题	语言	日期
产品设计指南	AW32105E 硬件设计指南	中文	2026-01-29
产品手册	DS_AW32105E_AW32105P_EN_V1.3	英文	2026-06-12
可靠性报告	Reliability Qualification Report For AW32105EHFCR	英文	2026-05-19
