AW32102CSR

Overvoltage Protection Load Switch with Bidirectional Blocking and Surge Protection

产品手册：

在线预览 - AW32102CSR - 产品手册

参考价格

1-99￥7.11
100-249￥5.83
250-499￥4.70
500-999￥3.70
1000+￥2.85

产品详细信息

参数

Default OVP Threshold (V)	13/23.6/Rset
Number of PIN	20
Surge Protection (V)	100
Continuous current of switch IN-OUT （Max）（A）	5
Ron (mΩ)	20
Input DC Withstand Voltage (V)	28
OVP Response Time (ns)	80
Temperature	-40℃~85℃
IO Level (V)	1.2 1.8 3.3
Package (mm)	WLCSP 2.19X1.75-20B

封装 | 引脚 | 尺寸

WLCSP 2.19X1.75-20B(0.6)

特性

Integrated ultra-low Ron switch: typical 20m Bidirectional blocking ｂｅｔｗｅｅｎＩＮａｎｄ OUT Pin-selectable overvoltage protection threshold VOVP=13V/23.6V/Rset Fast overvoltage protection turn-off response: typical 80ns Surge protection compliant with IEC61000-4-5 up to ±100V Wide input voltage range from 3.1V to 28V 5A continuous current Autonomous mode ａｎｄ slave mode operation WLCSP 2.19mm X1.75mm-20B, 0.4mm pitch package

说明

The AW32102 is a high input voltage, large current and ultra-low Ron load switch with bidirectional blocking.
The AW32102 is turned off very fast once the input voltage exceeds the OVP threshold to prevent damage to the protected downstream devices. The ＩＮ and OUT pin is capable of withstanding fault voltages up to 28VDC. The AW32102 provides a selectable OVP threshold of 13V/23.6V in Rset.
The AW32102 features reverse-blocking of output voltage. When the switch is open, the ＩＮ and OUT ports are completely cut off, preventing leakage current from ＩＮ to OUT and from OUT to ＩＮ.
The AW32102 OVP load switch features surge protection, an internal clamp circuit protects the device from surge voltages up to +/-100V. It also features over-temperature protection that prevents itself from thermal damaging.
Autonomous mode allows manual operation. Slave mode operation allows the device be controlled by a system controller.

技术文档

	类型	项目标题		语言		日期
	产品手册	DS_AW32102_EN_V1.6		英文		2024-09-18
	产品设计指南	AW32102 Hardware Design Guide		中文		2025-06-17

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

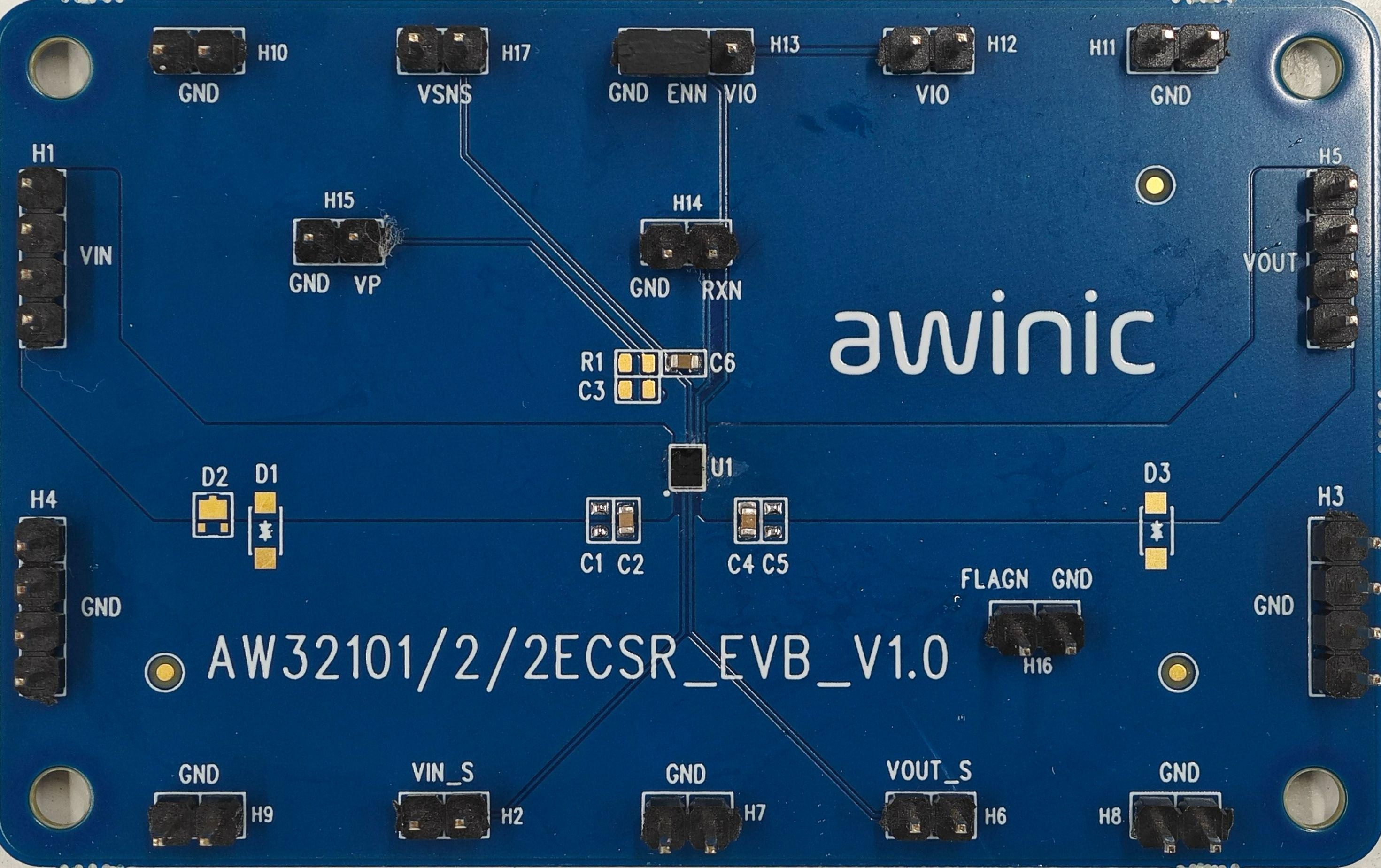

AW32101/2/2ECSR_EVB_V1.0 — AW32101/2/2ECSR EVB是艾为过压保护芯片功能评估板
