| Channel |
24 |
| Global Current Level |
32 |
| Current Levels for Color-Mixing |
256 |
| Current Levels for Dimming |
4096 |
| Charging Indicator |
NO |
| Control Interface |
IIC |
| Power Supply (Max) (V) |
5.5 |
| Global Max Current(mA) |
51 |
| IO Level (V) |
1.2
1.8
3.3 |
| Audio Sync. |
NO |
| Power Supply (Min) (V) |
2.7 |
| Auto Breath |
YES |
| Temperature |
-40℃~105℃ |
| Topology |
Linear |
| Package (mm) |
QFN 4X4-32L |
1、24/18-channel RGB LED Driver
2、Independent 12-bit PWM modulation
2.1、Independent color mixing register per channel
2.2、Independent brightness register per RGB LED group
2.3、Linear or logarithmic brightness control
3、Maximum output current: 25.5mA or 51mA
4、Autonomous Breathing Mode
5、Manual Breathing Mode
6、High-precision current sinks
6.1、Device to device error：±5%
6.2、Channel to channel error：±5%
7、LED Bank control
7.1、3 banks for RGB LED color control
7.2、1 bank for RGB LED brightness control
8、Power save mode when all LED off > 30ms
9、EMI reduction: slew rate control
10、Over temperature protection
11、1.2V IO compatible
12、Up to 1MHz I2C interface, 4 independent addresses, 1 broadcast address
13、Power supply: 2.7V to 5.5V
14、QFN 4mm x 4mm x 0.85mm 32L package

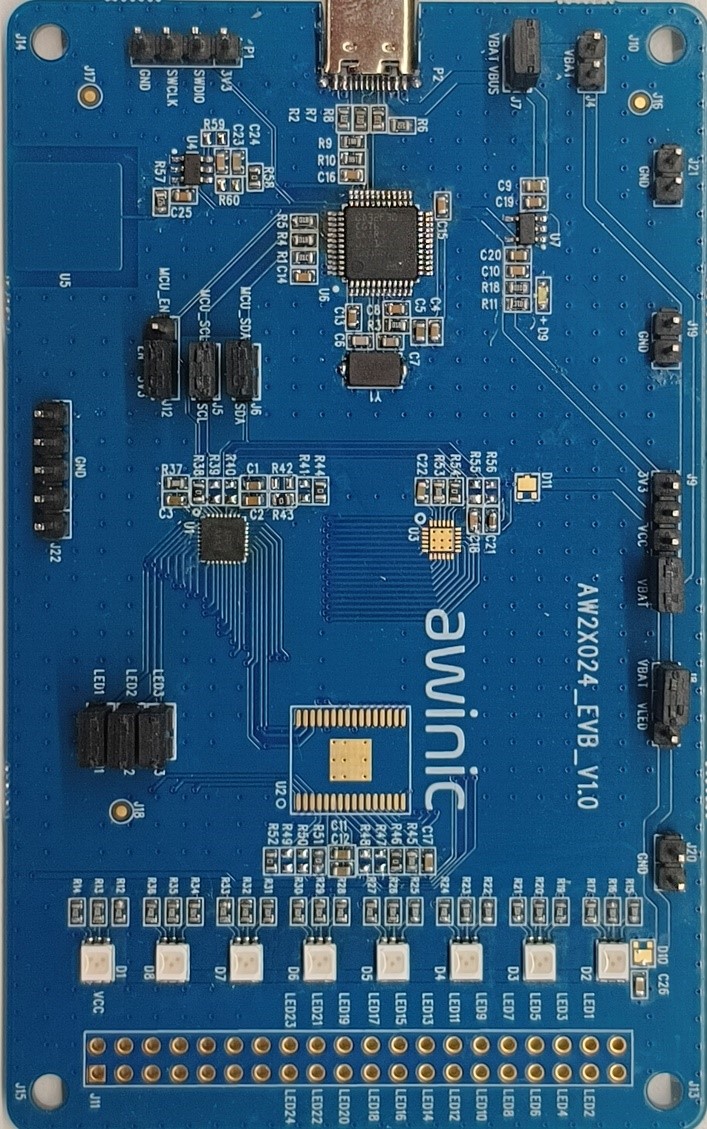

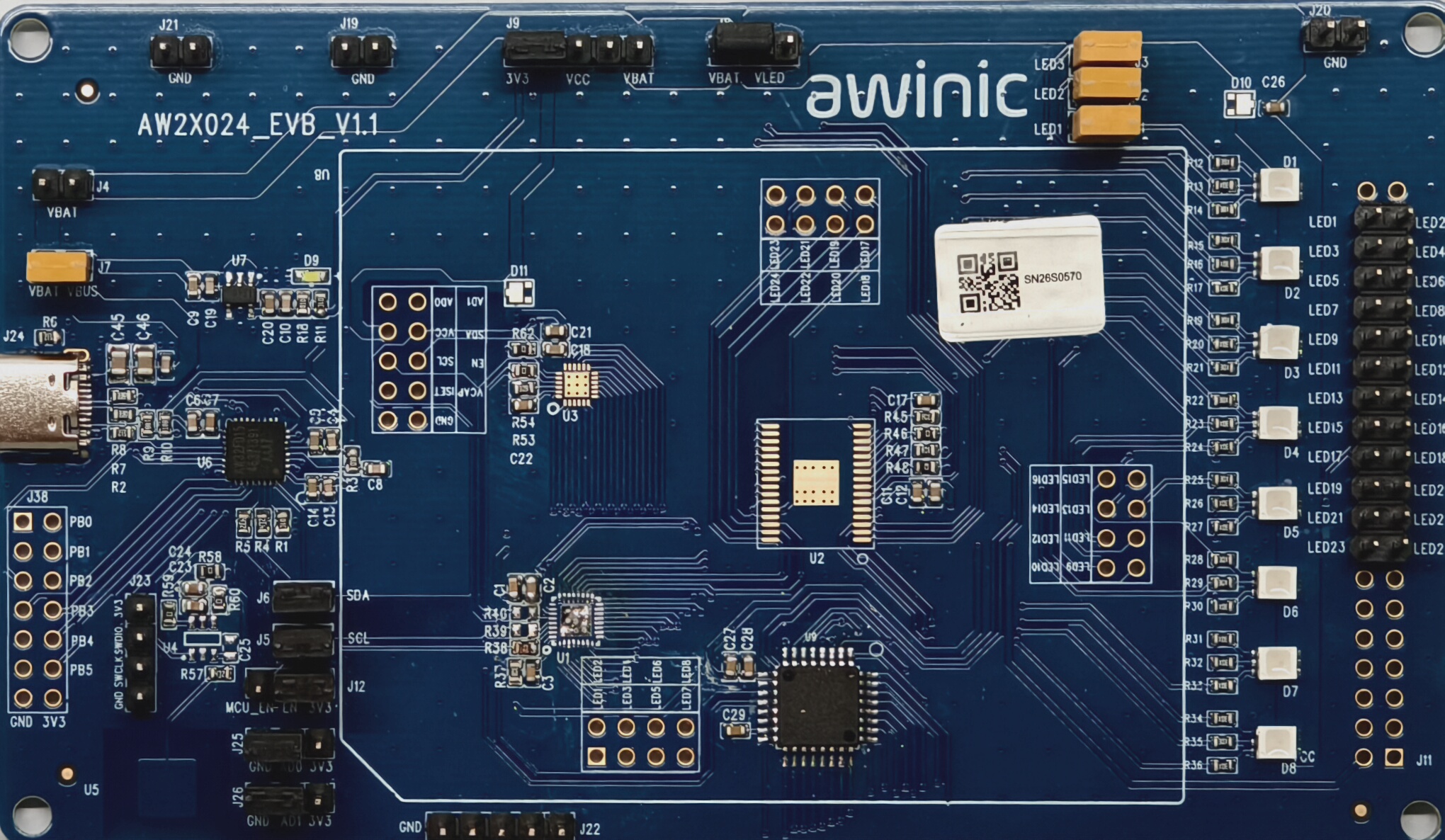

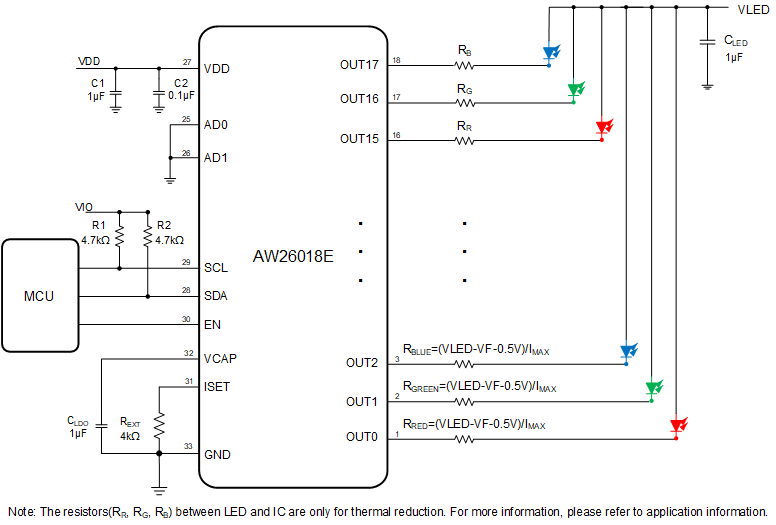

AW26024E/AW26018E is a 24/18-channel high precision constant current LED driver. AW26024E/AW26018E supports 5-bit globe current control. Each channel integrates independent 12-bit PWM generator which is composed of 8-bit brightness register and 8-bit color register. The maximum current of each channel is recommended to be configured via external resistor REXT.
AW26024E/AW26018E supports Auto-Breath-Pattern and has a flexible and efficient lighting effect programming function, which can reduce the resource occupation of the main controller.
AW26024E/AW26018E can be turned off with minimum current consumption by pulling the EN pin low. When EN pin pull high and all LEDs off >30ms, AW26024E/AW26018E enters power save mode.
AW26024E/AW26018E is available in QFN 4mm x 4mm x 0.85mm-32L package. It operates from 2.7V to 5.5V over the temperature range of -40℃ to 105℃.
