AW21018QNR

18 MULTI-FUNCTION LED DRIVER WITH I2C INTERFACE

产品手册 :

在线预览 - AW21018QNR-英语版 - 产品手册

参考价格：

1-99￥8.11
100-249￥6.65
250-499￥5.35
500-999￥4.22
1000+￥3.24

产品详细信息

Channel	18
Global Current Level	256
Current Levels for Color-Mixing	256
Current Levels for Dimming	4096
Charging Indicator	NO
Control Interface	IIC
Power Supply (Max) (V)	5.5
Global Max Current(mA)	40
IO Level (V)	1.8
Audio Sync.	NO
Power Supply (Min) (V)	2.7
Auto Breath	YES
Temperature	-40℃~85℃
Topology	Linear
Package (mm)	QFN 4X4-32L

QFN 4X4-32L

1、18-channel RGB LED Driver 1.1、Global 256-levels DC current configuration 1.2、Individual 4096-levels PWM for dimming 1.3、Individual 256-levels current for color-mixing 1.4、Dither function 2、High-precision current sinks 2.1、Device-to-device error: ±5% 2.2、Channel-to-channel error: ±5% 3、EMI ａｎｄ audible noise reduction 3.1、Slew rate control function 4、Flexible LED lighting pattern control 5、LED open/short detection per channel 6、Auto power save mode when all LEDs off > 32ms 7、Under voltage lock out ａｎｄ over temperature protection 8、1MHz I2C interface, 4 selectable addresses: 20h, 21h, 24h, 25h 9、Power supply: 2.7V~5.5V 10、QFN 3mmX3mmX0.75mm-20L package

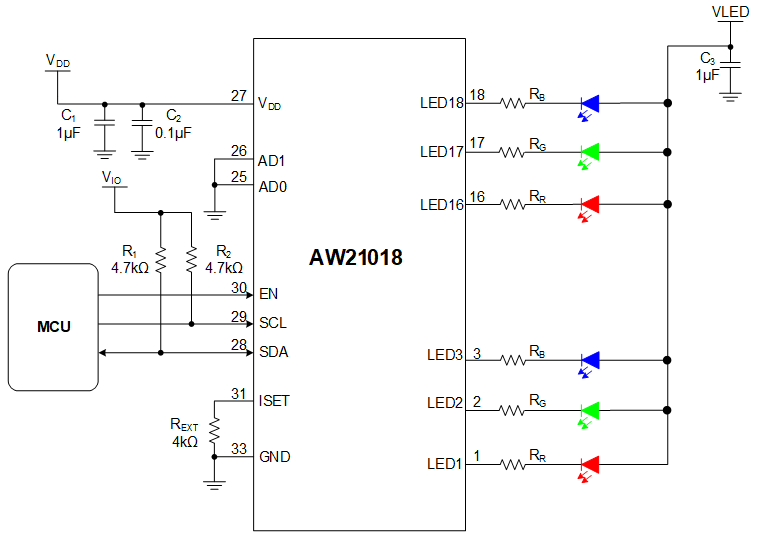

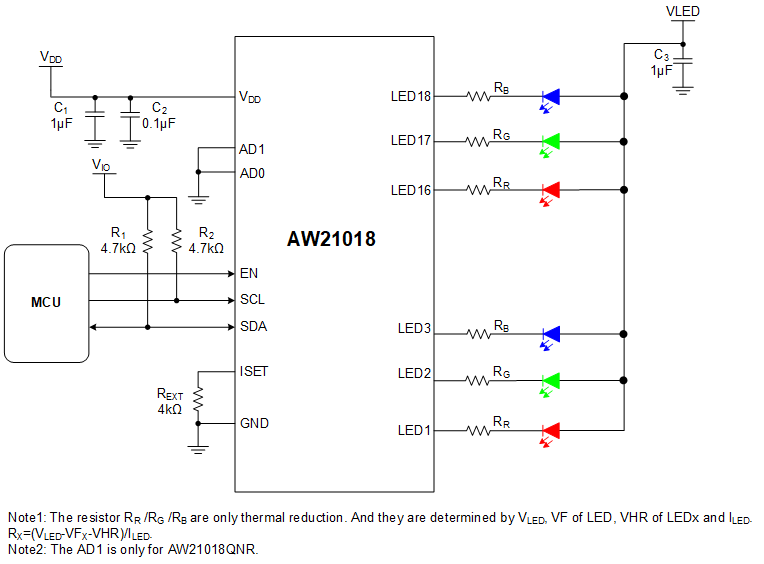

AW21018 is an 18-channel multi-function LED driver. Each channel has individual 8-bit DC current setting for color-mixing and maximum 12-bit PWM resolution for brightness control. The global current of each channel is recommended to be 40mA configured via register and external resistor REXT.
Group control mode, autonomous breathing pattern and rapid RGB control mode are provided for flexible, high efficiency lighting effect programming and fast display updating.
Programmable phase-shifting and spread spectrum technology are utilized to reduce EMI and audible noise caused by MLCC when LEDs turn on in off simultaneously.
AW21018 can be turned off with minimum current consumption by pulling the EN pin low.
AW21018 is available in QFN 4mmX4mmX 0.85mm-32L package. It operates from 2.7V to 5.5V over the temperature range of -40°C to +85°C.
