| Channel |
18 |
| Global Current Level |
1 |
| Current Levels for Color-Mixing |
256 |
| Current Levels for Dimming |
1 |
| Charging Indicator |
NO |
| Control Interface |
IIC |
| Power Supply (Max) (V) |
5.5 |
| Global Max Current(mA) |
25.5 |
| IO Level (V) |
1.8 |
| Audio Sync. |
NO |
| Power Supply (Min) (V) |
2.7 |
| Auto Breath |
NO |
| Temperature |
-40℃~105℃ |
| Topology |
Linear |
| Package (mm) |
QFN 4X4-32L |
1. 18-channel RGB LED Driver
2. Independent color mixing register per channel
3. Maximum output current: 25.5mA
4. High-precision current sinks
4.1 Device to device error：±7%
4.2 Channel to channel error：±7%
5. Power save mode when all LED off > 30ms
6. 400kHz I2C interface, 4 independent addresses, 1 broadcast address
7. Power supply: 2.7V to 5.5V
8. QFN 4mm x 4mm x 0.85mm 32L package

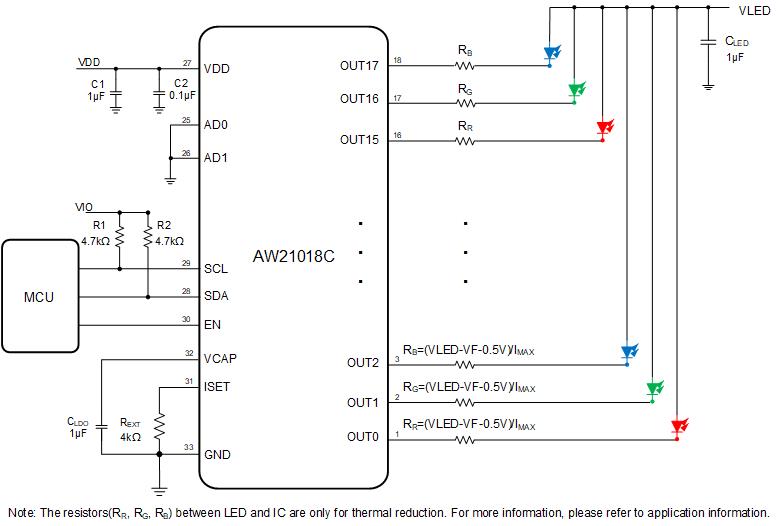

AW21018C is a 18-channel high precision constant current LED driver. r. The maximum current of each channel is recommended to be configured via external resistor REXT.
AW21018C can be turned off with minimum current consumption by pulling the EN pin low. When EN pin pull high and all LEDs off >30ms, AW21018C enters power save mode.
AW21018C is available in QFN 4mm x 4mm x 0.85mm-32L package. It operates from 2.7V to 5.5V over the temperature range of -40℃ to 105℃.
