AW20144QNR

18×8 MATRIX LED DRIVER WITH AUTO BREATH

产品手册：

在线预览 - AW20144QNR - 产品手册

参考价格

1-99￥15.38
100-249￥12.61
250-499￥10.15
500-999￥8.00
1000+￥6.15

产品详细信息

参数

Channel	144
Global Current Level	256
Current Levels for Color-Mixing	256
Current Levels for Dimming	256
Charging Indicator	NO
Control Interface	IIC
Power Supply (Max) (V)	5.5
Global Max Current(mA)	120
IO Level (V)	1.8
Audio Sync.	NO
Power Supply (Min) (V)	2.7
Auto Breath	YES
Temperature	-40℃~85℃
Topology	Matrix
Package (mm)	QFN 5X5-40L

封装 | 引脚 | 尺寸

WBQFN 5X5-40L(0.55)

特性

1、18 current sinks, 8 current switches, up to drive 144 LEDs ｏｒ 48 RGBs. 2、Programmable matrix size 3、3 pattern controllers for auto breathing ｏｒ group PWM control 4、Global 256-level DC current configuration 5、Individual 256-level PWM for dimming 6、Individual 256-level scaling current for color-mixing 7、High-precision current sinks 7.1、Device-to-device error: ±5% 7.2、Channel-to-channel error: ±5% 8、EMI ａｎｄ audible noise reduction 8.1、Phase control 8.2、Spread spectrum function 8.3、Programmable slew rate control 9、Programmable H/L logic 9.1、1.4V/0.4V 9.2、2.4V/0.6V 10、Individual 144 LEDs open/short detection 11、Multiple-device clock synchronization by SYNC pin 12、UVLO ａｎｄ over-temperature protection 13、De-Ghost 14、1MHz I2C interface, 16 selectable addresses 15、Power supply: 2.7V~5.5V 16、QFN 5mmx5mmx0.55mm-40L package

说明

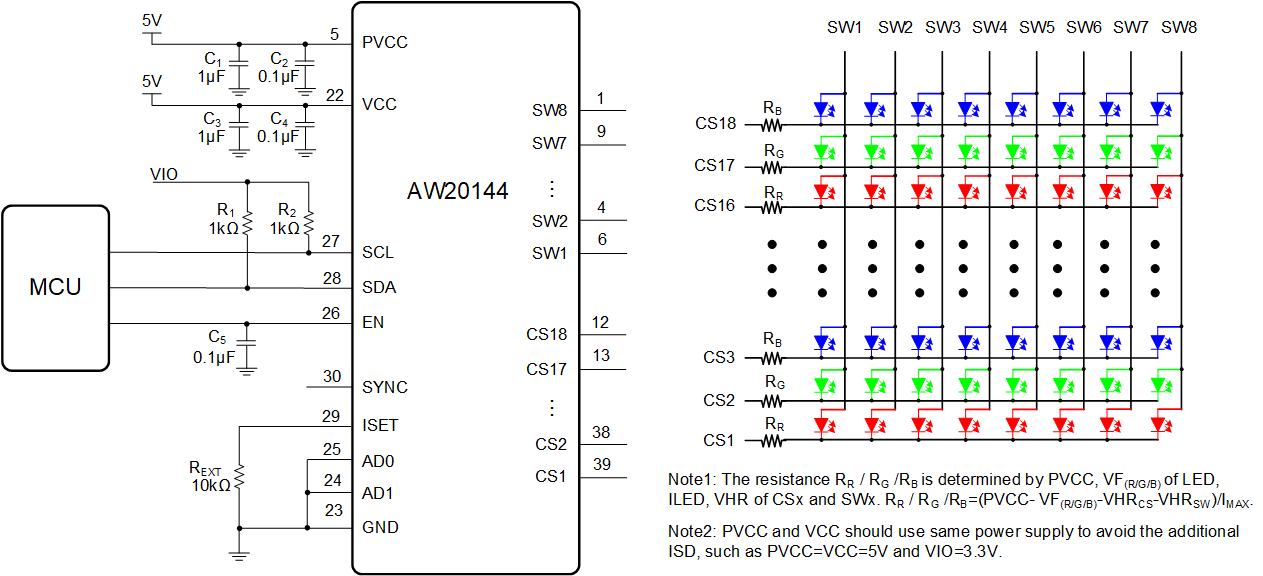

AW20144 is an 18x8 matrix LED driver programmed via an I2C compatible interface. Each channel has individual 8-bit DC current setting for color-mixing and 8-bit PWM current setting for brightness control. The global current of each channel is configured via register GCCR and external resistor REXT.
Three integrated pattern controllers provide auto breathing in group dimming control. Each pattern controller can work in auto breathing in manual control mode. All breathing parameters are configurable, including rising/falling slope, on/off time, repeat times, and minimum/maximum brightness, etc. Each LED’s PWM parameter can be sourced from any one of the 3 pattern controllers optionally.
Phase-delay, phase-inverting, selectable three phase, spread spectrum and slew rate control technology are utilized to reduce EMI and audible noise caused by MLCC when LEDs turn on in off simultaneously.
AW20144 can be turned off with minimum current consumption by either pulling the EN pin low in using the software reset.
AW20144 is available in QFN 5mmx5mmx 0.55mm-40L package. It operates from 2.7V to 5.5V over the temperature range of -40°C to +85°C.

技术文档

类型	项目标题	语言	日期
产品设计指南	AW20144 Software Design Guide	中文	2023-05-11
产品手册	DS_AW20144_EN_V1.9	英文	2024-12-12
产品设计指南	DG_AW20144X_AW20198X_AW20216X_Software_Design_Guide_CN_V1.5	中文	2025-09-09
产品设计指南	DG_AW20144X_AW20198X_AW20216X_Software_Design_Guide_EN_V1.5	英文	2025-09-09
产品设计指南	AW20144X AW20198X AW20216X Hardware Design Guide	中文	2025-09-08
产品设计指南	AW20144X AW20198X AW20216X Hardware Design Guide	英文	2025-09-15
产品应用手册	矩阵灯驱基础应用说明	中文	2026-06-07
