AW20144CQNR

18×8 MATRIX LED DRIVER WITH AUTO BREATH

产品手册 :

在线预览 - AW20144CQNR-英语版 - 产品手册

参考价格：

1-99￥6.00
100-249￥4.92
250-499￥3.96
500-999￥3.12
1000+￥2.40

产品详细信息

Channel	144
Global Current Level	1
Current Levels for Color-Mixing	1
Current Levels for Dimming	256
Charging Indicator	NO
Control Interface	IIC
Power Supply (Max) (V)	5.5
Global Max Current(mA)	40
IO Level (V)	1.8 3.3
Audio Sync.	NO
Power Supply (Min) (V)	2.7
Auto Breath	NO
Temperature	-40℃~105℃
Topology	Matrix
Package (mm)	QFN 5X5-40L

QFN 5X5-40L

1.18 current sinks, 8 current switches, up to drive 144 LEDs or 48 RGBs. 2.Programmable matrix size 3.Individual 256-level PWM for dimming 4.High-precision current sinks 4.1 Device-to-device error: ±7% 4.2 Channel-to-channel error: ±7% 5.EMI and audible noise reduction 5.1 Spread spectrum function 5.2 Programmable slew rate control 6.Programmable H/L logic 6.1 1.4V/0.4V 6.2 2.4V/0.6V 7.Individual 144 LEDs open/short detection 8.Multiple-device clock synchronization by SYNC pin 9.De-Ghost 10.1MHz I2C interface, 16 selectable addresses 11.Power supply: 2.7V~5.5V 12.QFN 5mmx5mmx0.55mm-40L package

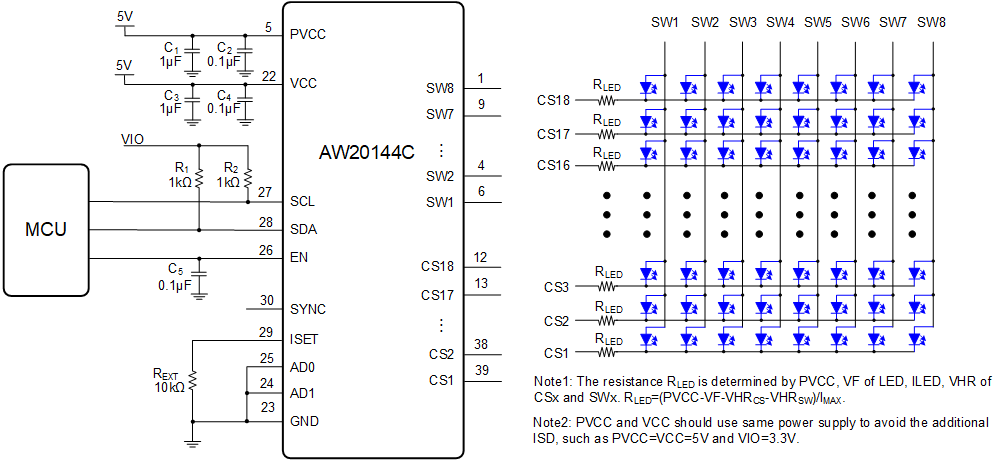

AW20144C is an 18x8 matrix LED driver programmed via an I2C compatible interface. Each channel has individual 8-bit PWM current setting for brightness control. The maximum global current of each channel is recommended to be 40mA configured via external resistor REXT. Spread spectrum and slew rate control technology are utilized to reduce EMI and audible noise caused by MLCC when LEDs turn on or off simultaneously. AW20144C can be turned off with minimum current consumption by either pulling the EN pin low or using the software reset. AW20144C is available in QFN 5mmx5mmx 0.55mm-40L package. It operates from 2.7V to 5.5V over the temperature range of -40°C to +105°C.

技术文档

类型	项目标题	语言	日期
产品设计指南	DG_AW20144C_AW20198C_AW20216C_Software_Design_Guide_CN_V1.0	中文	2025-12-23
产品设计指南	AW20XXXC Hardware Design Guide	中文	2025-12-26
产品手册	DS_AW20144C_EN_V1.2	英文	2026-01-26
