AW15019FDR

Fully-integrated 2.4G Low Noise Amplifier with Bypass Switch

产品手册：

在线预览 - AW15019FDR - 产品手册

参考价格

1-99￥4.23
100-249￥3.47
250-499￥2.79
500-999￥2.20
1000+￥1.69

产品详细信息

参数

Frequency (GHz)	2.4~2.5(GHz)
VCC (Min) (V)	1.65
VCC (Max) (V)	1.95
Gain(dB)	14
NF(dB)	2
Icc (mA)	2.7
Temperature	-40℃~85℃
P1dB (dBm)	-4
Package (mm)	FCDFN 1.1X0.9-6L

封装 | 引脚 | 尺寸

FCDFN 1.1X0.9-6L

特性

1.Ultra low current=2.7 mA
2.Low noise figure(NF)=2.0 dB
3.High power gain=14 dB
4.High input 1dB-compression point=-4 dBm
5.Integrated input matching inductor
6.Supply voltage: 1.65 V to 1.95 V
7.Operating frequencies: 2400~2500 MHz
8.FCDFN 1.1 mm X 0.9 mm X 0.37 mm-6L package
9.±1 kV HBM ESD protection (including RFIN and RFOUT pin)

说明

1.The AW15019 is a Low Noise Amplifier with bypass switch designed for 2.4GHz ISM Band application. With on-chip DC blocking capacitors at RFIN and RFOUT, the AW15019 can be close to the antenna. The AW15019 doesn’t requires any external matching inductor, which can reduce assembly complexity and the PCB area, enabling a cost-effective solution.
2.The AW15019 with patented Smart Linearity Technology (SLT) achieves low noise figure, high linearity, high gain, over a wide range of supply voltages from 1.65 V up to 1.95 V. All these features make AW15019 an excellent choice for wireless transceiver solutions with ISM band as it improves sensitivity with low noise figure and high gain, provides better immunity against out-of-band jammer signals with high linearity, reduces filtering requirement of preceding stage and hence reduces the overall cost of the transceiver.
3.The AW15019 is available in a small lead-free, RoHS-Compliant, FCDFN 1.1 mm X 0.9 mm X 0.37 mm-6L package.

技术文档

类型	项目标题	语言	日期
产品手册	DS_AW15019FDR_EN_V1.4	英文	2023-06-06
Checklist	CL_客户_项目_AW15019FDR_Customer_CN_V1.1	中文	2026-02-02
技术帖	【技术帖】LNA缺货？不！艾为电子全规格覆盖！	中文	2026-04-27

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

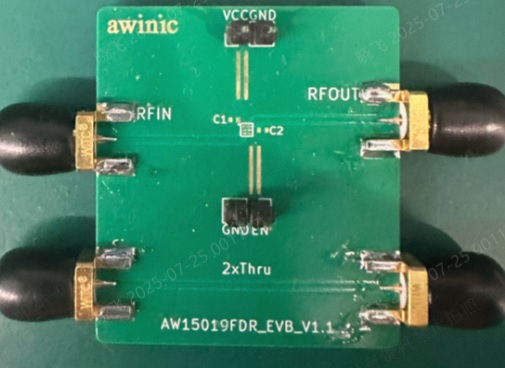

AW15019FDR_EVB_V1.1 — 该款EVB用于AW15019的S参数、噪声等性能评估。

适用于BT LNA的性能评估

了解详情

硬件开发

评估板

AW15019FDR_EVB_V1.1 — 该款EVB用于AW15019的S参数、噪声等性能评估。

适用于BT LNA的性能评估

了解详情
