| Frequency (GHz) |
0.1~3.8 |
| Switch Feature |
SP8T ASM |
| Control Interface |
MIPI |
| VDD (Min) (V) |
NA |
| VDD (Max) (V) |
NA |
| VIO (Min) (V) |
1.6 |
| VIO (Max) (V) |
2.0 |
| P0.1dB (dBm) |
37 |
| IL (Min) (dB) |
0.55 |
| IL (Max) (dB) |
0.75 |
| ISO (Max) (dB) |
30 |
| ISO (Min) (dB) |
22 |
| Temperature |
-40℃~85℃ |
| Package (mm) |
QFN 2X2-14L |
1.Broadband frequency range: 0.1 to 3.8 GHz
2.Low insertion loss: 0.65dB typical @ 2.7 GHz
3.High isolation: 25dB typical @ 2.7 GHz
4.P0.1dB @ 37dBm
5.MIPI RFFE V2.1 interface

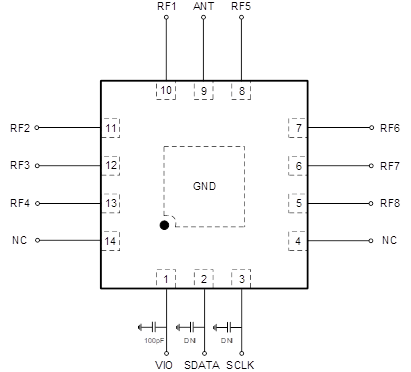

6.QFN 2.0mm x 2.0mm x 0.55mm-14L package
7.No DC blocking capacitors required (unless
8.external DC is applied to the RF ports)

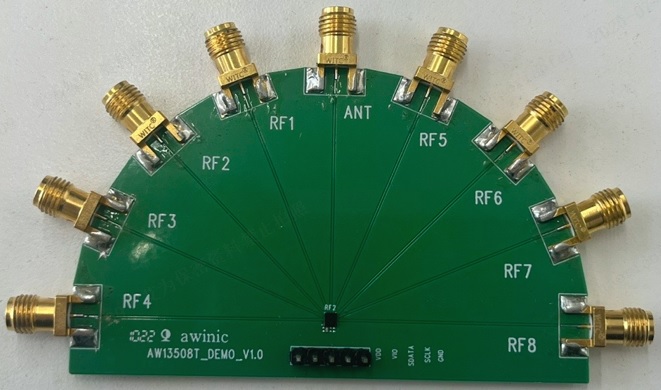

1.The AW13508TQNR is a SP8T switch with low insertion loss and high isolation. It can be used to support band switching and mode switching in antenna transmit and receive systems for 2G/3G/4G, data cards and tablets.
2.The AW13508TQNR is perfectly compatible with MIPI RFFE V2.1 control interface. It is provided in a compact QFN 2.0mm x 2.0mm x 0.55mm-14L package.
