| Frequency (GHz) |
0.1~3.8 |
| Switch Feature |
SP8T Diversity Switch |
| Control Interface |
GPIO |
| VDD (Min) (V) |
2.4 |
| VDD (Max) (V) |
3 |
| VIO (Min) (V) |
NA |
| VIO (Max) (V) |
NA |
| P0.1dB (dBm) |
31 |
| IL (Min) (dB) |
0.31 |
| IL (Max) (dB) |
0.56 |
| ISO (Max) (dB) |
40 |
| ISO (Min) (dB) |
24 |
| Temperature |
-40℃~85℃ |
| Package (mm) |
QFN 2X2-14L |
•Broadband frequency range: 0.1 to 3.8 GHz
•Low insertion loss: 0.85dB typical @ 3.8 GHz
•High isolation: >16dB @ 3.8 GHz
•Integrated logic
•Small QFN 2mmX2mmX0.55mm-14L package

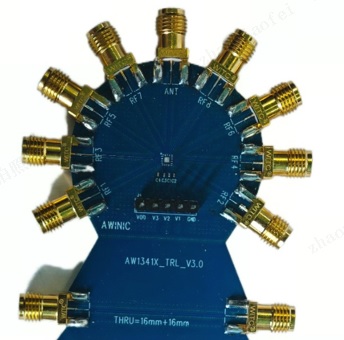

The AW13418RQNR is a SP8T switch with low insertion loss and high Isolation. It can be used to support band switching and mode switching in antenna diversity systems for 2G/3G/4G, data cards and tablets.
The symmetrical design of internal ports makes it convenient for PCB routing and adjustment of receiving and transmitting signals. The band/mode switching is realized by the GPIO pins as referenced in the chip block diagram and the control logic.
The AW13418RQNR is provided in a compact QFN 2mmX2mmX0.55mm-14L.
