AW13112TDNR

0.1-8.2 GHz SPDT Switch

产品手册：

在线预览 - AW13112TDNR - 产品手册

参考价格

1-99￥1.54
100-249￥1.26
250-499￥1.02
500-999￥0.80
1000+￥0.62

产品详细信息

参数

Frequency (GHz)	0.1~8.2
Switch Feature	SPDT WLAN
Control Interface	GPIO
VDD (Min) (V)	0
VDD (Max) (V)	3.3
VIO (Min) (V)	NA
VIO (Max) (V)	NA
P0.1dB (dBm)	32
IL (Min) (dB)	0.27
IL (Max) (dB)	0.7
ISO (Max) (dB)	41
ISO (Min) (dB)	21
Temperature	-40℃~90℃
Package (mm)	DFN 1X1-6L

封装 | 引脚 | 尺寸

DFN 1X1-6L

特性

1.Broadband frequency range: 0.1 to 8.2 GHz
2.Low insertion loss: 0.40dB typical @ 2.4 GHz
3.Low insertion loss: 0.50dB typical @ 5.8 GHz
4.High isolation: 37 dB @ 2.4 GHz
5.High P0.1 dB of 32 dBm
6.Wide 1.65 to 3.3 V supply voltage range
7.DFN 1.0 mm x 1.0 mm x 0.45 mm-6L package

说明

The AW13112TDNR is a Silicon-On-Insulator(SOI) SPDT switch with low insertion loss, high isolation and high linearity at low supply voltage. It can be used to support mode switching in WLAN applications. The symmetrical design of internal ports makes it convenient for PCB routing and adjustment of receiving and transmitting signals. The mode switching is realized by the GPIO pins as referenced in the chip block diagram and the control logic. The AW13112TDNR is provided in a compact DFN 1.0 mm x 1.0 mm x 0.45 mm-6L package.

技术文档

	类型	项目标题		语言		日期
	产品设计指南	AW13112TDNR Hardware Design Guide		英文		2023-03-27
	产品手册	DS_AW13112TDNR_EN_V1.3		英文		2023-08-02

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

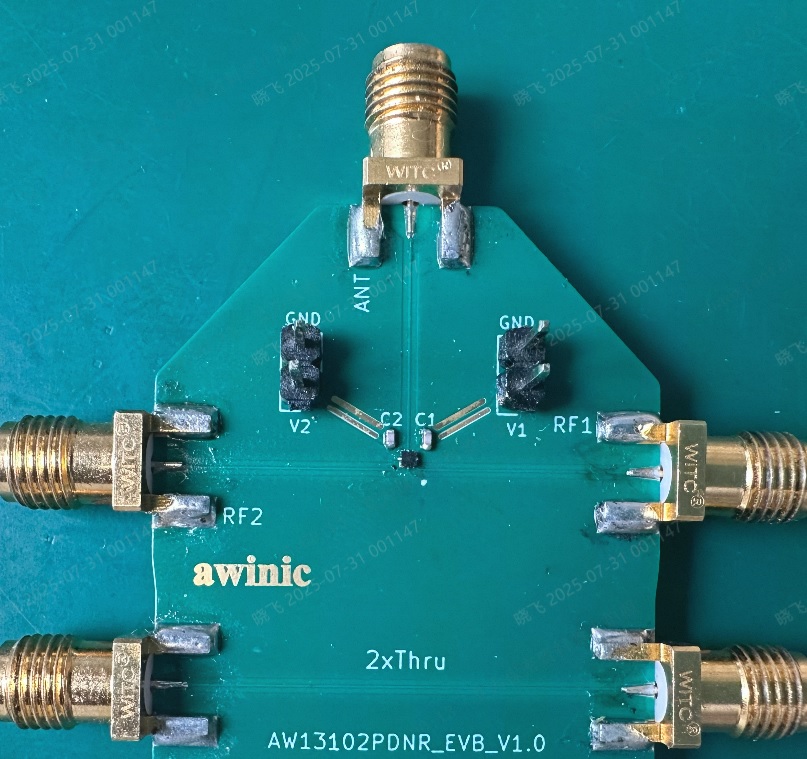

AW13102PDNR_EVB_V1.0 — 该款EVB用于SPDT开关的S参数、P0.1dB、谐波等性能评估。

适用于1010封装的SPDT开关性能评估

了解详情

硬件开发

评估板

AW13102PDNR_EVB_V1.0 — 该款EVB用于SPDT开关的S参数、P0.1dB、谐波等性能评估。

适用于1010封装的SPDT开关性能评估

了解详情
