| Frequency (GHz) |
0.1~5.925 |
| Switch Feature |
SPDT WLAN |
| Control Interface |
GPIO |
| VDD (Min) (V) |
1.65 |
| VDD (Max) (V) |
3.6 |
| VIO (Min) (V) |
/ |
| VIO (Max) (V) |
/ |
| P0.1dB (dBm) |
32 |
| IL (Min) (dB) |
0.3 |
| IL (Max) (dB) |
0.75 |
| ISO (Max) (dB) |
44 |
| ISO (Min) (dB) |
19 |
| Temperature |
-40℃~105℃ |
| Package (mm) |
SOT363-6L |
1.Broadband frequency range: 0.1 to 5.925GHz
2.Large supply voltage range: 1.65V to 3.6V
3.Low insertion loss: 0.42dB@2.4GHz
4.High isolation: 36dB@2.4GHz
5.Integrated logic
6.High switching speed: 130ns typical
7.Small SOT363-6L Package
The AW13102HSTR is a single-pole dual-throw switch with power handing capability of up to 32dBm and low insertion loss. It can be used to support WLAN, Low power T/R applications.

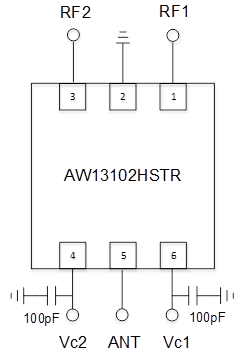

The symmetrical design of internal ports makes it convenient for PCB routing and adjustment of receiving and transmitting signals. The band/mode switching is realized by the GPIO pins as referenced in the chip block diagram and the control logic.
