AW86802CSR

데이터 시트 :
미리보기 - AW86802CSR - 데이터 시트

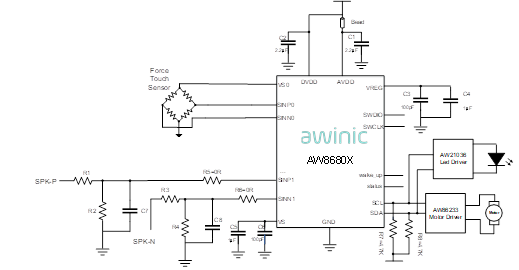

제품 상세 정보

매개변수

PGA 1~2048
INTN/GPIO 16
Watch Dog YES
MCU Arm M0+
DAC (bit) 12
CTRL IF I²C/UART
Low Power Mode YES
Channel 8
Temperature -40℃~85℃
Package (mm) WLCSP 2.325X2.665-42B
ADC (bit) 14

패키지 | 핀 | 크기

WLCSP 2.325X2.665-42B

특징

24MHz ARM®CortexTM-M0+ 4KB LDROM, 60KB Flash, 16KB SRAM Selectable Gains of 1, …, 2048 100 K SPS 14 bit SAR ADC 12-bit offset calibration DAC CRC32 ａｎｄ High-speed divider 2 x 32-bit timer, 2 watch-dog Support 1MHz I²C, UART I²C 7-bit slave address：0x5C 8 analog input channel, 16 GPIO pins Power-on reset, Low voltage detection Low voltage reset ａｎｄ temperature detection Support In-System Programming (ISP) & In-Circuit Programming (ICP) Low power mode WLCSP 2.325mmX2.665mmX0.340mm-42B package

기술 문서
유형
제목
언어
날짜
Product Design Guide AW8680X Software Design Guide 英文   2023-04-20
Product Design Guide AW8680X Software Design Guide 中文   2023-04-20
Product Design Guide AW8680X_Hardware_Design_Guide 中文   2024-10-25
Datasheet DS_AW8680X_EN_V1.4 英文   2025-10-20
Checklist CL_客户_项目_AW8680x_Customer_CN_V1.0 中文   2026-02-02

설계 및 개발

추가 조건이나 필요한 리소스가 있는 경우, 아래 제목을 클릭하여 사용 가능한 경우 상세 페이지를 확인하세요.

하드웨어 개발

평가 보드

AW86802 Top Board V1.0 — AW86802 Top Board V1.0 is a daughter board of the Aiwei Force Touch EVB Evaluation Board. When combined with the motherboard and pressure sensor, can achieve single-chip functional evaluation.

EVB evaluation daughter board for Force Touch. Adapt to Force Touch_EVB_V1.1

옵션 보기
소프트웨어 개발

DRIVER OR LIBRARY

AW8680X_Drivers — Android drivers for AW8680X series.

Android drivers for AW8680X series,including sample code,porting guide,etc.

옵션 보기

DRIVER OR LIBRARY

AW8680X_Driver_MCU_V1.2.0 — MCU drivers for AW8680X series.

MCU drivers for AW8680X series，including sample code,porting guide and etc.

옵션 보기
하드웨어 개발

평가 보드

AW86802 Top Board V1.0 — AW86802 Top Board V1.0 is a daughter board of the Aiwei Force Touch EVB Evaluation Board. When combined with the motherboard and pressure sensor, can achieve single-chip functional evaluation.

EVB evaluation daughter board for Force Touch. Adapt to Force Touch_EVB_V1.1

옵션 보기
