AWS72903SPR

36V Low Power Dual Differential Comparators

製品マニュアル :

オンラインプレビュー - AWS72903SPR-英語版 - 製品マニュアル

参考価格：

1-99￥2.03
100-249￥1.66
250-499￥1.34
500-999￥1.05
1000+￥0.81

製品詳細情報

Channel	2
Propagation delay time （L to H）(μs)	2.8
Propagation delay time （H to L）(μs)	1.5
Rise time(ns)	/
Fall time(ns)	/
Vs (Min) (V)	2.5
Vs (Max) (V)	36
Vos (offset voltage @ 25 C) (Max) (mV)	3
Iq per channel (Typ) (mA)	0.109
Input Common Mode Voltage Range(V)	(V-) ~ (V+)-1.5V
Output type	Open Drain
Temperature	-40℃~125℃
Package (mm)	SOP-8L

WBSOP-8L(1.75)

Supply Operation From 2.5 V to 36 V Response time: 1.5μs(typ) at VCC=5V Low Current Consumption:109μA/ch Low Input Bias Current:130pA Low Input Offset Voltage: ±0.6mV(typ) Input Common-mode Voltage Range Includes Ground Internal Differential Input Voltage Range Equal to the Supply Voltage TTL, DTL, ECL, MOS, CMOS compatible Outputs Open drain output Wide Temperature Range: -40 °C to 125 °C High ESD Tolerance: 6 kV HBM, 2 kV CDM

The AWS72903 consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Quiescent current is independent of the supply voltage. The device is the most cost-effective solutions for applications where low offset voltage, high supply voltage capability, low supply current, and space saving are the primary specifications in circuit design for portable consumer products. The AWS72903 is available in green small-size SOP - 8L package and MSOP - 8L package.

技術文書

	タイプ	プロジェクトタイトル		言語		日付
	产品设计指南	AWS72903 硬件设计指南		中文		2024-05-09
	产品手册	DS_AWS72903_EN_V1.0		英文		2024-05-27

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

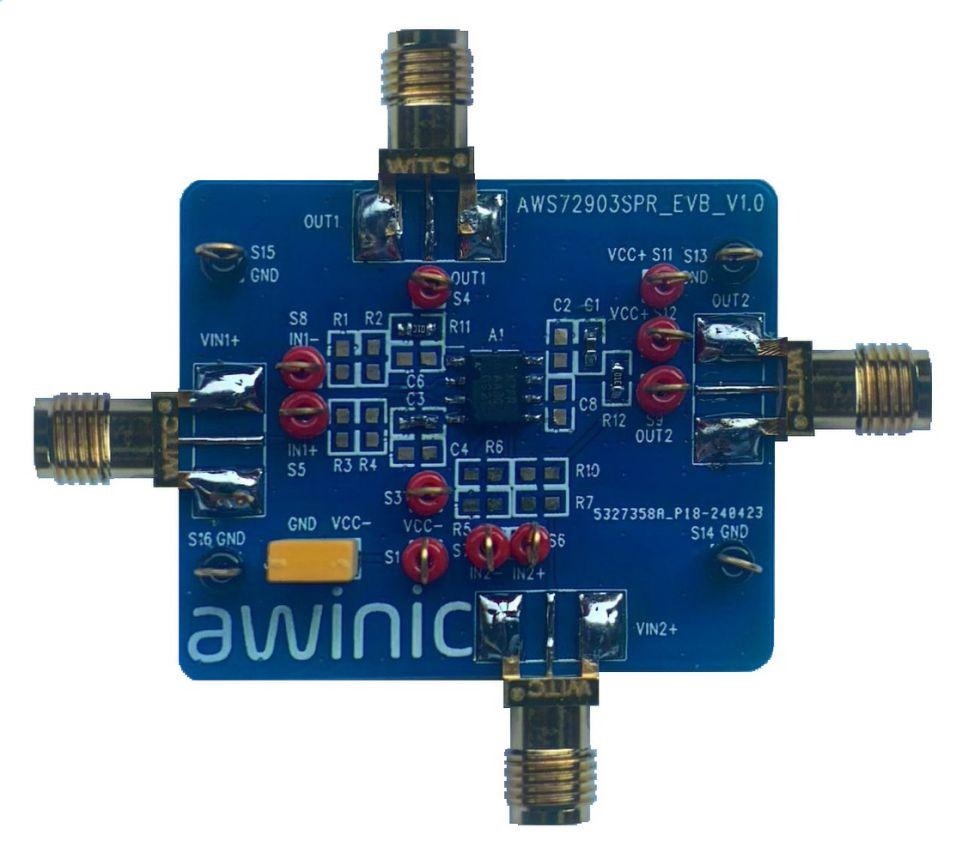

AWS72903SPR_EVB_V1.0 — AWS72903SPR EVB是艾为一款高压通用比较器测试板，芯片关键测试点均用SMA接口在EVB板上单独引出，方便演示和测试

高压通用比较器AWS72903SPR的EVB评估板

了解详情

硬件开发

评估板

AWS72903SPR_EVB_V1.0 — AWS72903SPR EVB是艾为一款高压通用比较器测试板，芯片关键测试点均用SMA接口在EVB板上单独引出，方便演示和测试

高压通用比较器AWS72903SPR的EVB评估板

了解详情
