| Default OVP Threshold (V) |
5.95 |
| Number of PIN |
12 |
| Surge Protection (V) |
80 |
| Continuous current of switch IN-OUT （Max）（A） |
5 |
| Ron (mΩ) |
29 |
| Input DC Withstand Voltage (V) |
29 |
| OVP Response Time (ns) |
50 |
| Temperature |
-40℃~85℃ |
| IO Level (V) |
1.8 |
| Package (mm) |
FCQFN 1.6X1.2-12L |
Highly reliable FCQFN 1.6mm×1.2mm-12L package
Surge protection
IEC 61000-4-5: 80V
Integrated low Rdson nFET switch: typical 29mΩ
5A continuous current capability
Default Over-Voltage Protection threshold
AWP32901C: 5.95V
OVP threshold adjustable range: 4V to 24V
Input system ESD protection
IEC 61000-4-2 Contact discharge: ±8kV
IEC 61000-4-2 Air gap discharge: ±15kV
Input voltage: 29VDC
Fast turn-off response: typical 50ns
Over-Temperature Protection (OTP)
Under-Voltage Lockout (UVLO)
AWP329XXC family OVP load switch features surge protection, an internal clamp circuit protects the device from surge voltages up to 80V.
AWP329XXC features an ultra-low 29mΩ (typ.) Rdson nFET load switch. When input voltage exceeds the OVP threshold, the switch is turned off very fast to prevent damage to the protected downstream devices. The IN pin is capable of withstanding fault voltages up to 29VDC.

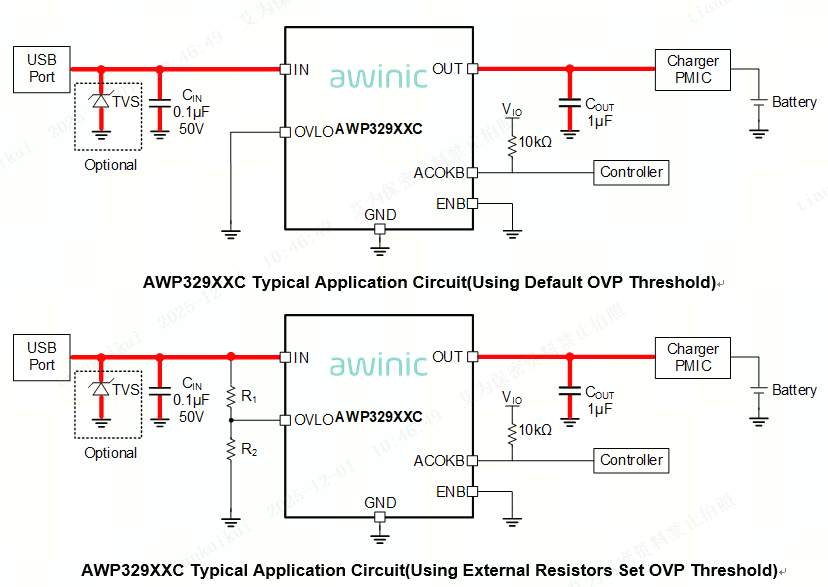

The default OVP threshold is 5.95V (AWP32901C)、10.5V (AWP32919C), the OVP threshold can be adjusted from 4V to 24V through external OVLO pin.
The device features an open-drain output ACOKB, when VIN_UVLO< VIN < VIN_OVLO and the switch is on, ACOKB will be driven low to indicate a good power input, otherwise it is high impedance.
This device features over-temperature protection that prevents itself from thermal damaging.
