/ I2C GPIO拡張

AW95016ABGR

データシート：

製品詳細

パラメータ

Channel	16
Addresses	2
Reset	√
Constant Current	×
Pull-up	√
Level Shift	√
Temperature	-40℃~85℃
Power Supply (Min) (V)	1.65
Power Supply (Max) (V)	5.5
Package (mm)	BGA 3X3-24B

パッケージ | ピン | サイズ

BGA 3X3-24B

特性

16-bit general-purpose I/O expander
16 multi-function I/O, each can be configured as GPIO input or output mode independently
Dual power supply, supporting converting between VDD(P) and VDD(I2C-BUS)
Selectable push-pull or open-drain output
Interrupt latch function
Four programmable output drive strengths
Open-drain active LOW interrupt output (INTN)
1MHz I2C interface, 2 selectable addresses
SCL/SDA inputs supports 1.8V logic input
Power supply: 1.65V~5.5V
BGA 3.0mm × 3.0mm × 0.86mm - 24B package

技術文書

タイプ	タイトル	言語	日付
Product Design Guide	AW95016(A) 硬件设计指南	中文	2023-03-17
Datasheet	DS_AW95016A_EN_V1.5	英文	2023-07-14
Product Application Note	GPIO 扩展基础应用说明	中文	2026-05-11
Product Application Note	GPIO&LED基础应用说明	中文	2026-06-26

設計と開発

追加の条件や必要なリソースについては、以下のタイトルをクリックして詳細ページをご覧ください。

ハードウェア開発

評価ボード

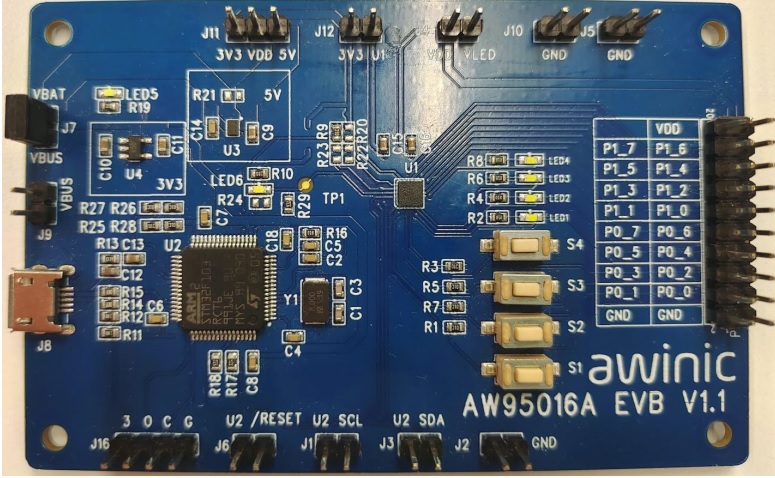

AW95016A EVB V1.1 — AW95016A EVB V1.1 is a EVB evaluation board for 16-channel I/O port expansion and its supply voltage is 1.65V-5.5V. Each I/O port can be configured as input or output. When configured as output mode, it can be used to directly drive LEDs.

EVB evaluation board for 16-channel I/O port expansion

オプションを表示

ソフトウェア開発

APPLICATION SOFTWARE&FRAMEWORK

AW21018_AW21012_AW21009_AW95016A_GUI — Intelligent RGB LED driver Tunning Tools of AW210XX series

AW210XX GUI is a highly integrated and easy-to-use tool for product configuration and debugging.Intuitive interface and user-friendly operation can help custion can help customers shorten development cycle and complete system integration quickly

オプションを表示

DRIVER OR LIBRARY

AW95016_Driver_Qcom — Qcom Driver for AW95016

AW95016 Driver,includeing sample code,porting guide,debugging guide etc

オプションを表示

DRIVER OR LIBRARY

AW95016_Drivers — Android and other drivers for AW95016 series

Android and other drivers for AW95016 series, including example code, porting guide, debugging guide, etc.

オプションを表示

APPLICATION SOFTWARE&FRAMEWORK

AW21018_AW21016_AW21012_AW21009_AW95016A_GUI — Intelligent RGB LED driver Tunning Tools of AW210XX series

AW21018_AW21016_AW21012_AW21009_AW95016A_GUI is a highly integrated and easy-to-use tool for product configuration and debugging.Intuitive interface and user-friendly operation can help custion can help customers shorten development cycle and complete system integration quickly

オプションを表示
