AW86214QNR

データシート：

製品詳細

パラメータ

Voltage Type	Vbat
Vout (Max) (V)	5.5
SRAM (kB)	3
Istandby (μA)	3
IO Level (V)	1.8<br>3.3
AAE	YES
Input Signal	IIC<br>1TRIG
LRA Calibration	LCC2.0
Temperature	-40℃~85℃
TikTap	YES
Package (mm)	QFN 2X2-12L

パッケージ | ピン | サイズ

QFN 2X2-12L

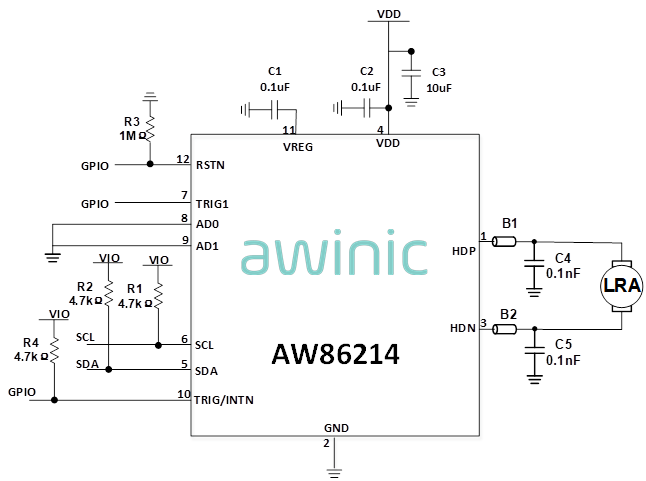

特性

 1MHz I2C Bus
 Integrated 3K Memory
 12k/24k/48k input wave sampling rate
 F0 detect and tracking
 Advance autobrake engine integrated
 Playback mode:
 Real time playback
 Memory playback
 1 Trigger playback
 Cont playback
 Resistance-Based LRA Diagnostics
 Drive signal monitor for LRA protect
 Drive Compensation Over Battery Discharge
 Fast Start Up Time: 0.4ms
 Dedicated interrupt output pin
 Support automatically switch to standby mode
 Standby current: 3uA
 Shutdown current: ＜1uA
 Supply voltage range 3 to 5.5V
 Short-Circuit Protection, Over-Temperature Protection, Under-Voltage Protection
 QFN 2mmX2mmX0.5mm-12L Package

技術文書

タイプ	タイトル	言語	日付
Product Design Guide	AW862XX Software Design Guide	中文	2023-09-08
Product Design Guide	AW862XX Software Design Guide	英文	2023-09-11
Product Design Guide	AW86214QNR应用设计指南	中文	2023-06-28
Datasheet	DS_AW86214QNR_Datasheet_EN_V2.1	英文	2023-09-21
Checklist	CL_客户_项目_AW8622X_Customer_CN_V1.2	中文	2026-02-02

設計と開発

追加の条件や必要なリソースについては、以下のタイトルをクリックして詳細ページをご覧ください。

ハードウェア開発

評価ボード

AW86214 Top Board V1.0 — It is suitable for performance evaluation board of Haptic chip AW86214, and used with V1.0 baseplate

AW86214 chip EVB evaluation board

オプションを表示

評価ボード

AW86223 Top Board V1.0 — It is suitable for performance evaluation board of Haptic chip AW86223、AW86214, and used with V1.0 baseplate

AW86223、AW86214 chip EVB evaluation board

オプションを表示

ソフトウェア開発

DRIVER OR LIBRARY

HapticNv_Drivers — Android drivers for HAPTIC_NV series.

Android drivers for HAPTIC_NV series，including sample code,porting guide,debuging guide,etc.

オプションを表示

APPLICATION SOFTWARE&FRAMEWORK

AW862xx_GUI — AW862XX series Tunning Tool

AW862XX GUI is a highly intergrated and easy-to-use tool for product configuration and debugging. Intuitive interface and uer-friendly operation can help customers shorten development cycle and complete system intergration quickly.

オプションを表示
