AW85807TSR

データシート：
プレビュー - AW85807TSR - データシート

製品詳細

パラメータ

Control Interface IIC
Temperature -40℃~85℃
DSP YES
Noise (μV) 32
PO(W)（8&THD=1%） 1×60W@2Ω, 18V, THD+N <1% in PBTL mode
PO(W)（4&THD=1%） 2×30W@4Ω, 18V, THD+N<1% in BTL mode
IO Supply (Max) (V) 3.63
IO Supply (Min) (V) 1.62
Digital Supply (Max) (V) 3.63
Digital Supply (Min) (V) 1.62
Power Supply (Max) (V) 20
Power Supply (Min) (V) 4.5
IV Sense NO
Loadmin（Ω) 2
Channel 2

パッケージ | ピン | サイズ

ETSSOP-28L

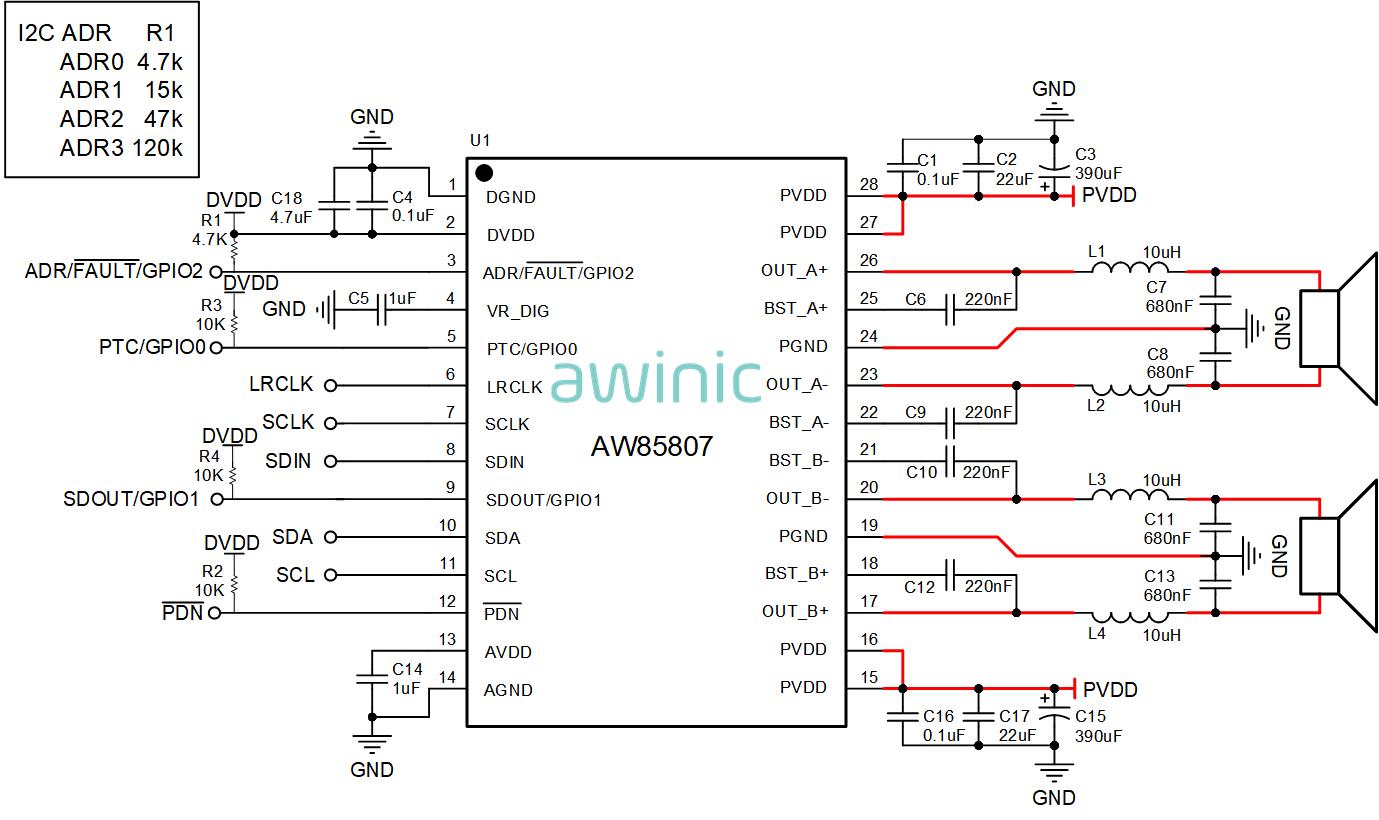

特性

 Integrates SKTune Algorithm Smart Protection (Anti-chip Voltage Limiter, Thermal Control, Auto Voltage Monitor) Power Tracking Control (PTC) 2x20 Parametric Equalizers (EQ) Dynamic Equalizer Enhancement (DEE) Multi-band Dynamic Range Control Auto Gain Control (AGC)  Output Power 2×30W@4Ω, 18V, THD+N<1% in BTL mode 1×60W@2Ω, 18V, THD+N <1% in PBTL mode  Excellent Audio Performance THD+N≤0.02%@6Ω,1 W,1 kHz, PVDD = 12 V SNR≥110dB@4Ω,1%,1 kHz, PVDD = 18 V, A-weighted Noise Level ≤32uVrms  High-efficiency Class-D Amplifier Power efficiency 90%, RDSon 90mΩ Low quiescent current < 17 mA Supports Low-Loss Mode  I2S/TDM interface I2S, Left-Justified and Right-Justified Supports 1/2/4/6/8/16 Slots TDM Supports 32k,44.1k,48k,88.2k,96k,192kHz Sample Rates Data Width: 16, 20, 24, 32 Bits SDOUT for audio monitoring or echo cancellation  I2C-bus control interface(1MHz)  Extensive Pop-Click Suppression  Volume control (from -96dB to 0dB)  Support Spread Spectrum to Enhance EMI Performance  Multiple switching frequencies AM/FM avoidance Supports 384kHz、480kHz、576kHz、768kHz、960 kHz、1200kHz switching frequencies  Power Supplies PVDD: 4.5V~20V DVDD: 1.8V/3.3V  Integrated Self-Protection Over-Current Protection (OCP) Over-Temperature Protection (OTP) Over / Under-Voltage Lock-out (OVLO/UVLO) DC-detect and short-circuit protection ETSSOP-28L Package

技術文書
タイプ
タイトル
言語
日付
Datasheet DS_AW85807_EN_V1.0 英文   2026-01-25
Product Design Guide AW85807TSR 硬件设计指南 中文   2026-01-26
Product Design Guide AW85807TSR Hardware Design Guide 英文   2026-06-08
New product launch 【新品发布】 赋能中大功率音频升级！AW85805STSR&AW85807TSR，SKTune神仙®算法+PTC智能省功耗双buff! 中文   2026-03-23
