AW85180FCR

23V Digital Input, High Efficiency Class-D Audio Amplifier with PSM and SKTune Algorithm

製品マニュアル :

オンラインプレビュー - AW85180FCR-英語版 - 製品マニュアル

参考価格：

1-99￥26.36
100-249￥21.61
250-499￥17.40
500-999￥13.71
1000+￥10.54

製品詳細情報

Control Interface	IIC
Temperature	-40℃~105℃
DSP	YES
Noise (μV)	28
PO(W)（8&THD=1%）	12.5
PO(W)（4&THD=1%）	25
IO Supply (Max) (V)	3.63
IO Supply (Min) (V)	1.62
Digital Supply (Max) (V)	1.98
Digital Supply (Min) (V)	1.62
Power Supply (Max) (V)	23
Power Supply (Min) (V)	3
IV Sense	YES
Loadmin（Ω)	3.2
Channel	1

FCQFN 4X3.5-30L

Key Features Integrated DSP for Audio Processing 23V supply for Class-D Output Stage PSM Multi-Level Supply Architecture PTC External Boost Control Algorithm Ultrasonic Output Support up to 40kHz Output Power 25W@4Ω, 18V, THD+N<1% 30W@4Ω, >18V, THD+N<10% High-efficiency Class-D Amplifier PSM ON 81% at 0.5W,4Ω, PVDDH=18V, PVDDL=5V 84% at 1W,4Ω, PVDDH=18V, PVDDL=5V High-efficiency Class-D Amplifier PSM OFF 80% at 1W, 4Ω, PVDDH=18V, PVDDL=5V 89% at 10W, 4Ω, PVDDH=18V, PVDDL=5V 90% at 20W, 4Ω, PVDDH=18V, PVDDL=5V Interface and Control I2S/TDM:8 Channels of 32 bits up to 96ksps Data Width: 16, 20, 24, 32 bits 32kHz to 192kHz Sample Rates Advanced DSP Audio Processing Real-time IV-Sense for Speaker Protection Nonlinear Excursion Compensation(NEC) Piano Noise Suppression Brownout Protection with Power Limiter Dynamic Equalizer Enhancement (DEE) Protection and EMI: Over Power and Low Battery Protection PVDDH/PVDDL Supply Tracking Limiters Thermal and Over Current Protections Thermal Foldback Slew Rate Control Power Supplies PVDDH: 3V~23V PVDDL: 2.7V~5.5V AVDD: 1.8V IOVDD: 1.8V/3.3V Integrated Self-Protection Over-Current Protection (OCP) Over-Temperature Protection (OTP) Over/Under-Voltage Lock-out (OVLO/UVLO) Cycle by Cycle (CBC) DC-detect and Short-circuit Protection FCQFN 3.5mmX4mm-30L Package

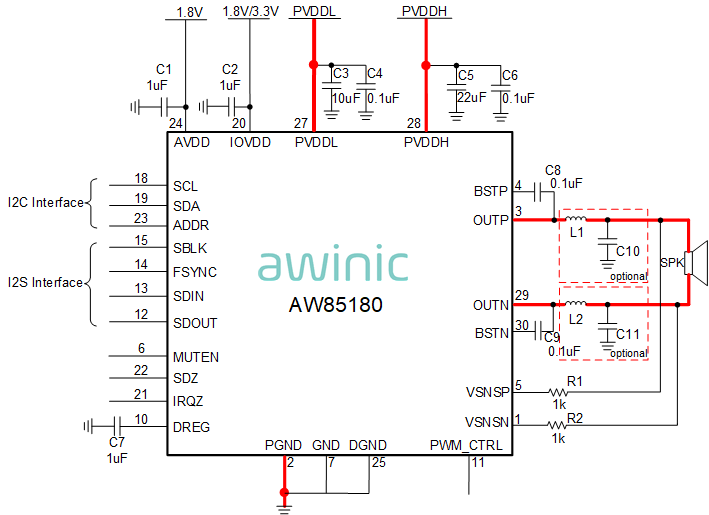

The AW85180 is a mono, digital input Class-D audio amplifier optimized for efficiently driving high peak power into loudspeakers. The Class-D amplifier is capable of delivering 25W of continuous power into a 4Ω load with less than 1% THD+N at a supply voltage of 18V. The broad voltage input range and the high output power makes this amplifier versatile enough to work with battery or line powered systems. The AW85180 integrates SKTune algorithm that includes parametric audio path equalizer, dynamic range control, and smart protection, etc. The integrated speaker voltage and current sense provides for real-time monitoring of loudspeakers. PSM power architecture improves amplifier efficiency by internally selection the supplies for optimal headroom. Brownout prevention scheme with adjustable threshold allows reducing the gain in signal path when the supply drops. The PTC algorithm allows user to optimize efficiency and improve battery life by controlling the external power supply. Up to eight AW85180 devices can share a common bus via I2S/TDM and I2C interfaces. AW85180 is available in a 30 pin FCQFN 3.5mmX4mm-30L Package for a compact PCB footprint.

技術文書

タイプ	プロジェクトタイトル	言語	日付
产品手册	DS_AW85180FCR_EN_V1.0	英文	2025-09-25
产品设计指南	AW85180FCR Hardware Design Guide	中文	2026-01-24
产品设计指南	AW85180 软件设计指南	中文	2026-04-27
产品设计指南	AW85180 Software Design Guide	英文	2026-04-27
Checklist	CL_XX客户_XX项目_AW85180_Customer_CN_V1.0	中文	2026-05-18
新品发布	【新品发布】AW85180FCR中功率音频功放：内置IV Sense+SKTune神仙®算法加持，赋能终端音频体验升级	中文	2026-03-02
技术帖	【技术贴】解密艾为飞天™DSP黑科技：技术演进、产品迭代与特色算法	中文	2025-10-30

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

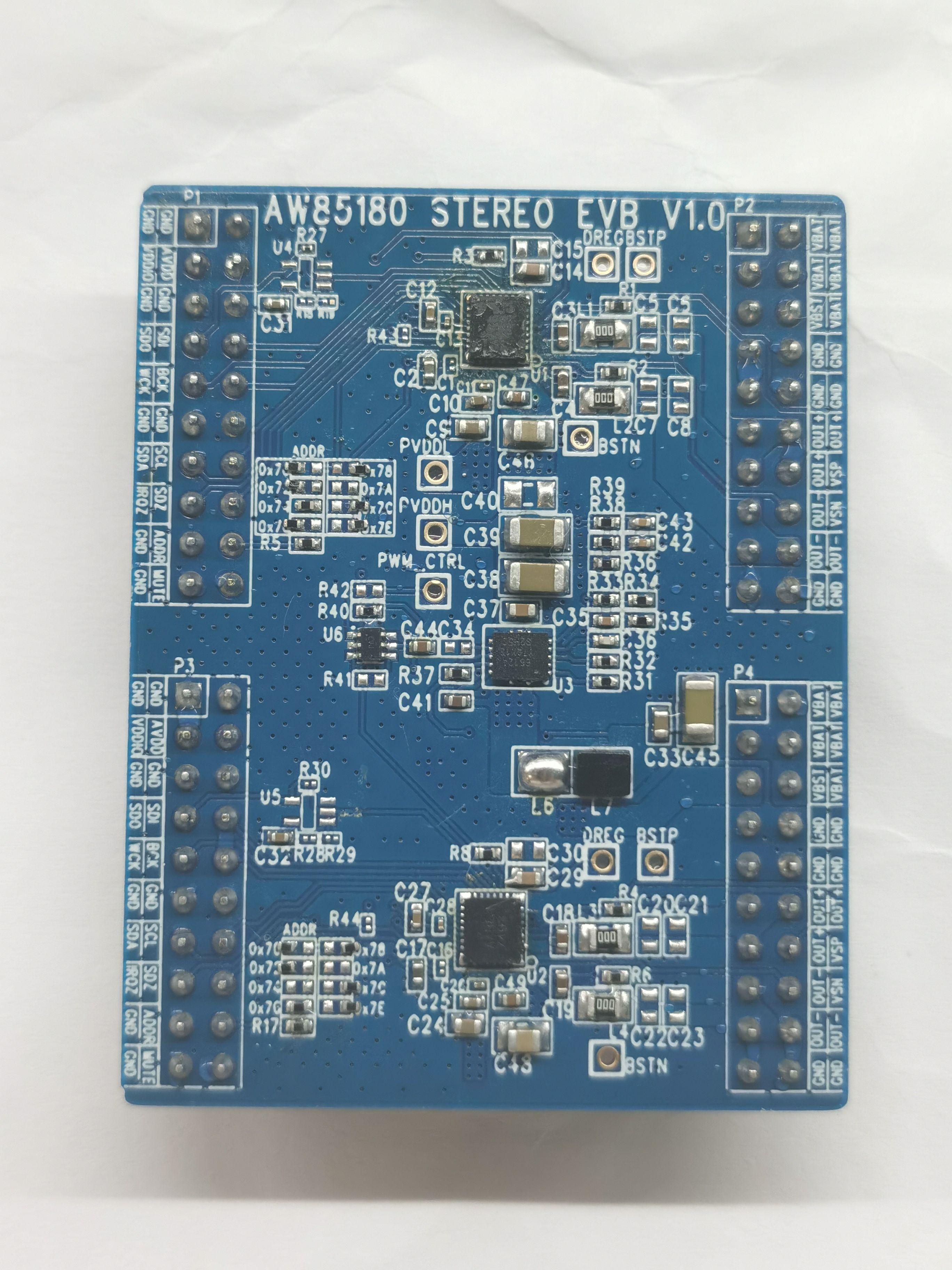

AW85180FCR_STEREO_EVB_V1.0 — AW85180FCR_STEREO_EVB_V1.0是艾为单boost双PA方案的演示Demo子板，可实现单boost双声道演示。

适用于AW85180FCR，单boost双PA应用场景演示

了解详情

评估板

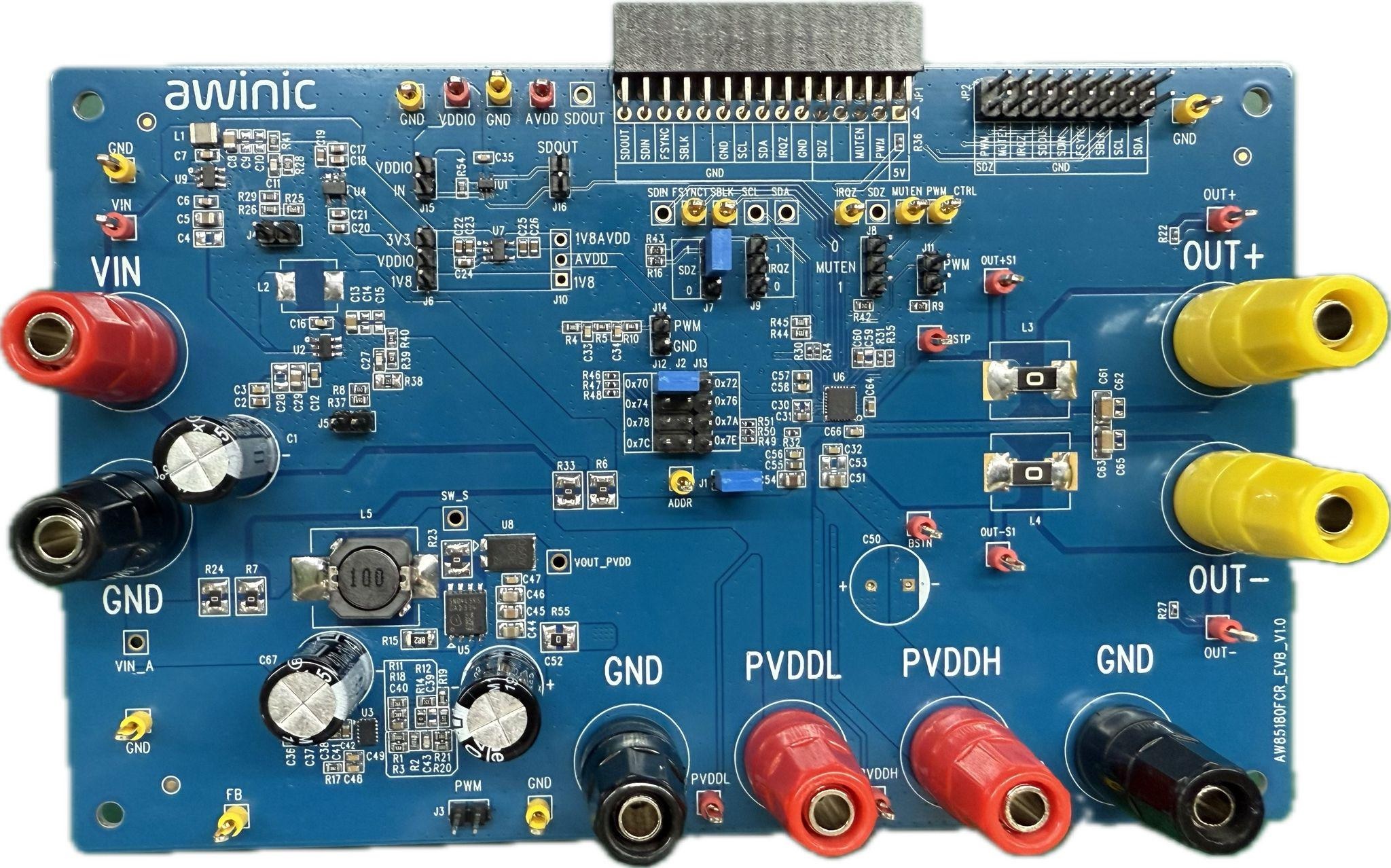

AW85180FCR_EVB_V1.0 — AW85180FCR EVB板是艾为数字功放演示板，配合USB_To_IIS通信板，通过配套软件，可实现数字功放演示。
