| Motor Type |
Stepper Motor |
| H bridge |
2 |
| Micro Step |
最大32微步 |
| VDD (Min) (V) |
3 |
| VDD (Max) (V) |
12 |
| Peak Current (A) |
1.1 |
| Ron (mΩ) |
950 |
| Control Mode |
STEP/DIR |
| CTRL IF |
HW GPIO |
| Temperature |
-40℃~85℃ |
| Function |
Current Regulation |
| Package (mm) |
FCBGA 2.4X2-30B |
-3V to 12V Supply Voltage Range
-1.1A Full Scale current per H-Bridge
-Rdson HS + LS: Typical 0.73Ω
-Support up to 1/32th Microstepping
-Decay Modes supported:
-Adaptive Decay Technology
Mixed Decay
Slow Decay
Fast Decay
Support 1.8V Logic Level
Programmable off-time 10μs，20μs, ｏｒ 30μs off-time
-Programmable Motor Torque Current
-Short-Circuit Protection, Over-Temperature Protection, Under-Voltage Protection
-Fault Condition Indication
-FCBGA 2.4mm X2mm X0.59mm-30B package

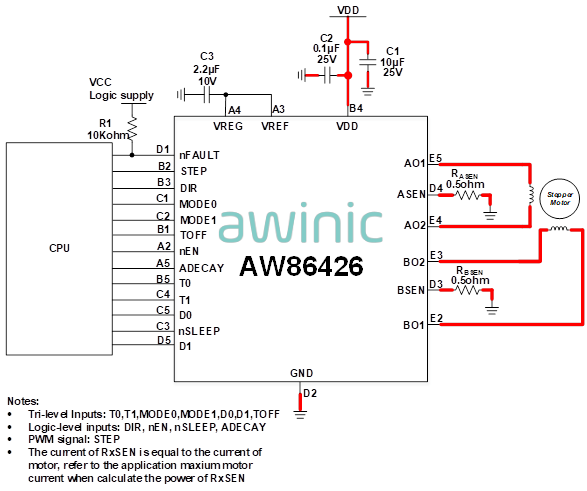

The AW86426 is a flexible microstepping stepper motor driver. It is designed to operate bipolar stepper motor with up to 1/32th step mode for mobile phones, tablets, ａｎｄ other automated equipment applications. The device can be controlled by simple STEP/DIR interface allowing easy interfacing to controller circuits. The output block of each H-bridge driver consists of N-channel ａｎｄ P-channel power MOSFETS configured as full H-bridges to drive the motor windings.
Pins allow configuration of the motor ｉｎ full-step up to 1/32th step modes. Decay mode is configurable so that adaptive decay, slow decay, fast decay, ａｎｄ mixed decay can be used. A low power ｓｌｅｅｐ mode is provided to achieve very-low quiescent current draw.
AW86426 is capable of driving up to 1.1A (Full Scale) ｏｒ 0.77A (RMS) current per H-Bridge
The device offers a complete set of protection features including UVLO, overcurrent protection, short circuit protection, ａｎｄ over temperature. Fault conditions are indicated via the nFAULT pin.
